SLARPbine Lever Action Foam Dart Blaster

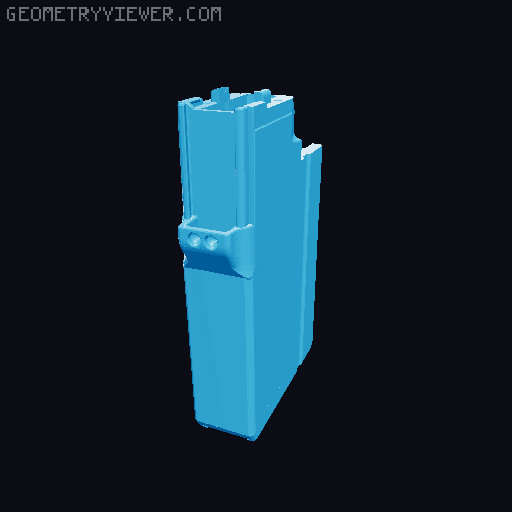

If the SLARP doesn't have a build guide, this is ostensibly worse. All the parts from BOM are the same, but the lengths of the steel rods are entirely arbitrary, shortened to fit. Changes: I have remixed the SLARP to be more “performance oriented” while maintaing its form factor. Magazine: 10 round "Air Service" mag inspired by the M1903 Air Service rifle Carbine forend: Shortened from the original by 10cm to accommodate the 35cm kuryaka barrel (though any 35cm barrel will work) 2-in-1 plunger weight/spring spacer to improve performance with heavy darts Windage Adjustable ghost ring sights (not elevation adjustable, to adjust elevation file down the front sight) Future changes (release date TBD): Brass Breech (similar to my Lonx/Lynx performance parts) Fully adjustable rear sight Make the rear sight front screw tighter Cheek riser (solvent weldable) Build instructions: The rear sight requires an m3x4.6x5.7mm heat set insert. Heat set goes in the ghost ring peep, then a m3x25mm bolt is threaded through the sight base and peep. It is capped off with 2 m3 nuts, that are superglued together after locking the bolt from sliding out but allowing the bolt to rotate freely . The rear sight fits into the two holes in the blaster's reciever, using the SLAB screws. The front screw will be loose, but I'll address that with an alternative part later. Print instructions: Print parts in the orientations given. The spacer should be 100% infill. I print all my parts at 5-7 walls, 20-25% gyroid infill.
