Slim Prusa Face Shield holder (EU, 10x stack) 3D model thumbnail

Slim Prusa Face Shield holder (EU, 10x stack)

by UloPe · via Printables
FormatSTL
CategoryHome
LicenseCC BY-SA
Triangles169.2k
UploadedApr 7, 2020
⬇ 251 downloads ❤ 1 likes 👁 1.6k views

Description

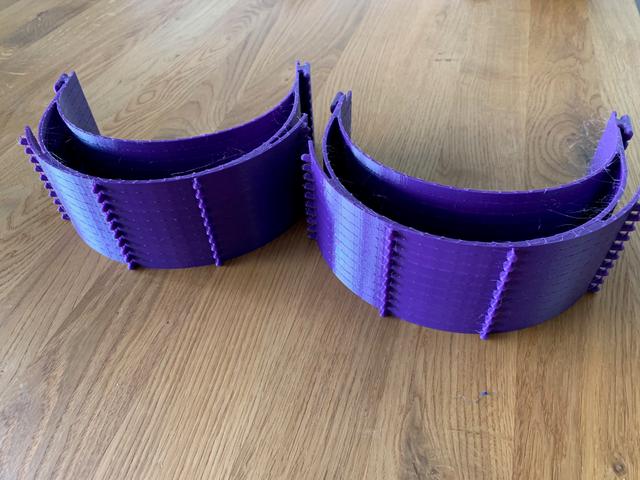

This is a slimmed down (to 7.5 mm height) version of the Prusa Face shield RC3 EU version. The STL contains a pre-made stack of 10. Two of those fit on a Prusa MK3 printbed. With optimized settings (all speeds set to 100 mm/s) it takes about 15h to print the 2x10 stacks on a 0.4mm nozzle. Equalling ~45m per part. The easiest way to separate the stack is to first crack the layers at the head band attachment points and the lugs for the face shield with a small screwdriver. After that a butter knife or spatula can be used to wedge them apart. Due to the 'perforations' between the stacked prints they do require a small bit of post-processing. Just a few passes with a knife or snading paper on the portion that touches the face is enough. Print instructions Prints well with almost default settings in PETG, Colorfabb nGen / XT. One important change is to enable the "Detect thin walls" setting to ensure proper printing of the break-off separations between the stacked parts. For improved throughput setting all speeds to 100mm/s works fine as well.

Originally published on Printables
