Slow Ultra Stick Landing Gear & Slow Ultra Stick Battery Tray 3D model thumbnail

Slow Ultra Stick Landing Gear & Slow Ultra Stick Battery Tray

by RickyGode · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-SA
UploadedMar 9, 2026
⬇ 34 downloads ❤ 1 likes 👁 39 views

Description

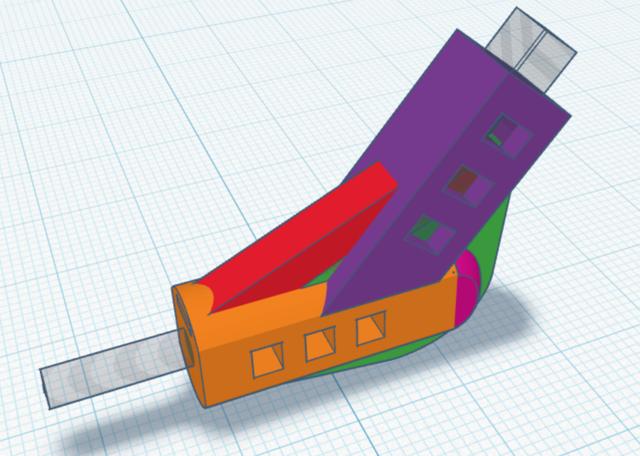

These should be drop in replacements for the original parts. Because the dimensional accuracy differs between printers you may have to adjust the flow rate for a snug fit. I used tinkercad and one of the images above shows the different parts I used. Use a couple of zip ties to attach the Battery Tray. I switched the battery and esc locations and added a 2nd tray to secure the battery better. I printed the battery tray in the same orientation as I uploaded the stl. Use supports. Use a 40mm m3 socket head screw for the wheel axel on the Landing Gear. I think the socket head does a better job of keeping the wheel on vs the little stock plastic nut. The 40mm m3 screw works great if you plan on switching out the stock tires for the Timber X ones. The landing gear will need supports also, but use support blocker for the insides. You don't want supports where the 4mmx4mm square carbon tube goes as well as the hole for the 40mm m3 screw.
