SMA Connector Locking Sleeve for Steadyview Module (SKYZONE SKY04O PRO and SKY04X PRO goggles)

by DrawnPrint · via Thingiverse
FormatSTEP
CategoryOther
LicenseCC BY-NC-SA
UploadedMar 29, 2026
⬇ 1 downloads 👁 18 views

Description

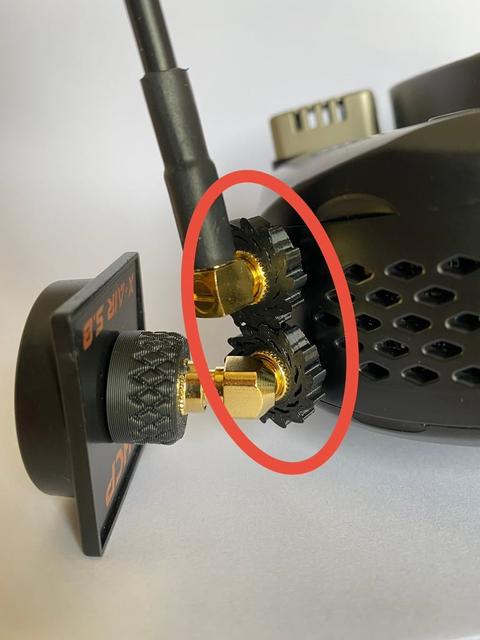

Quick fix for loose antennas on your Skyzone Steadyview receiver module. Simply print two and slide them over the SMA connectors before screwing them on. They will lock into each other like a ratchet and provide enough friction to hold the connectors in place while still allowing the antennas to be adjusted. Careful: do not apply too much force to prevent damaging the module. If anyone needs this for other modules, e.g. TBS Fusion or Rapidfire, let me know the distance between the two connectors and I can scale it to the appropriate size.
fpv fpv goggles SkyZone Skyzone 04o Pro skyzone goggle Skyzone O4X Pro Skyzone Sky04o Pro Skyzone Sky04X Pro SMA sma connector steadyview

Originally published on Thingiverse
