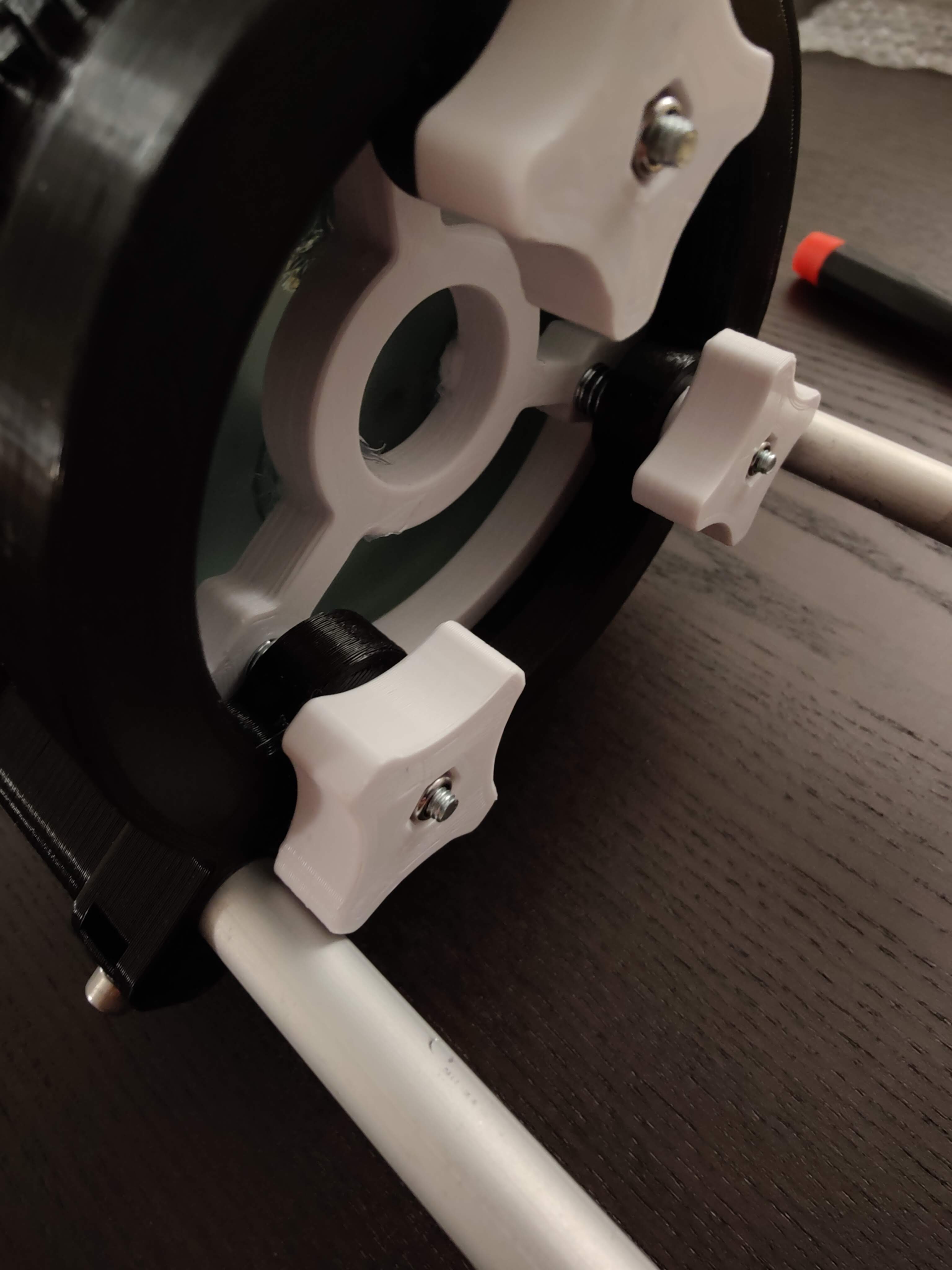

Smaller primary collimation knobs for metric Hadley 3D model thumbnail

Smaller primary collimation knobs for metric Hadley

by Michiel Desmedt · via Printables
FormatSTL
CategoryOther
LicensePublic Domain (CC0)
Triangles2.1k
UploadedFeb 7, 2023
⬇ 44 downloads ❤ 6 likes 👁 281 views

Description

After assembling the metric Hadley and trying to collimate, I noticed the collimation knobs hit the tubes: 📷 Image redacted — claim this model to add your own media Since I really want to have the tubes extend a bit further so the OTA will never rest on the collimation knobs, I made a slightly smaller version. I also made the whole knob a few mm shorter, giving me a lot more room for collimating using 40mm screws in the primary mirror cell. Now, the knobs turn fine while still having a satisfying feel to them: 📷 Image redacted — claim this model to add your own media
hadley hadleym4
