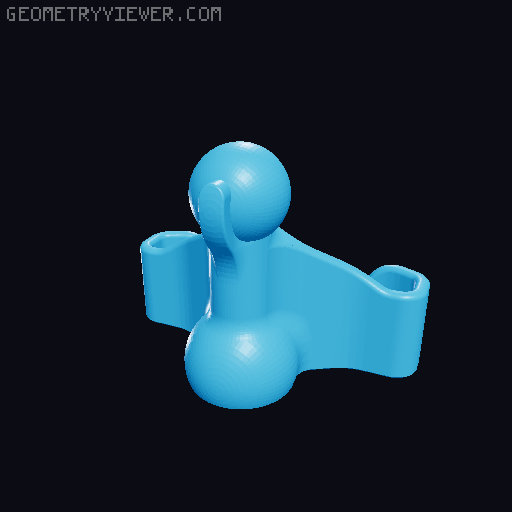

Smoother Cable Chain / Spine for SOVOL SV06 with scaled ball joint 3D model thumbnail

Smoother Cable Chain / Spine for SOVOL SV06 with scaled ball joint

by void_foo · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles40.1k
UploadedSep 24, 2023
⬇ 725 downloads ❤ 74 likes 👁 3.3k views

Description

This is a remix of the excellent cable chain for the Sovol SV06 made by rogerquin ( https://www.printables.com/model/447467-cable-chain-spine-for-sovol-sv06-3d-printer-extrud ). To make the chain flex smoothly, I used blender to scale down the ball (male) part of the mesh. Did not need to post-process with heat or grease, just snap together and go. Recommend using the 99% file. Printed with PLA, 0.2mm layer height, 2 or 3 perimeters, 10-20% infill, no support. Also used 1mm brim but that's probably optional. I included files for 98% and 100% as well. I printed about 24 of them in total for the ribbon. Copy & paste in your slicer to print multiple at the same time. On my setup I'm using the motherbox end remixed by PhantomAura ( https://www.printables.com/model/566847-sovol-sv06sv06-plus-cable-chain-motherboard-link ) and no extruder end. By request I included scaled versions of the two extruder end parts.
cablemanagement cablechain sv06 sovolsv06
