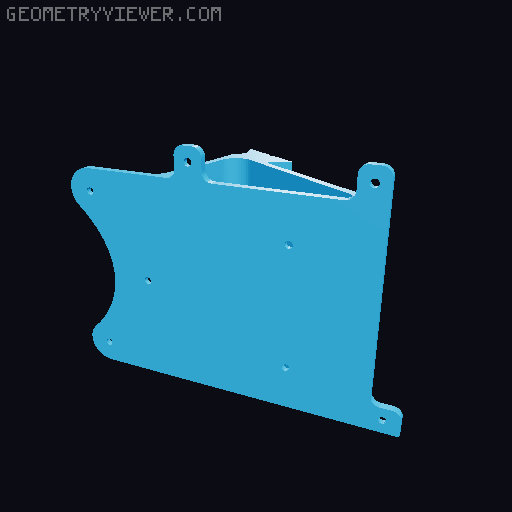

Solargraphy pinhole camera V2 3D model thumbnail

Solargraphy pinhole camera V2

by Jairo0777 · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-SA
Triangles2.7k
UploadedMar 16, 2026
⬇ 96 downloads 👁 103 views

Description

This is a solargraphy camera I designed Pretty sure it's too big and unpractical, but I still made it. Dimentions and info: Designed for 120x180 mm paper sheets. I used fomaspeed N311 Focal length (the distance between pinhole and paper) varies from 60 to 180 mm. To do that, you attach the paper to a sliding focal plane and insert it into the grooves inside the camera body. For pinhole you'll need a 45x45 mm piece of soda can metal and 4 M3 screws For lid you'll need 9 M4 screws. Also I designed the lid to be loose so that a silicone gasket can be inserted into the gap All pinhole cameras I make share same pinhole frame and wall mount profiles. The simplest wall mount I made: https://www.thingiverse.com/thing:7316430 Feel free to use it!
pin hole Pin Hole Camera pinhole pinhole camera solargraph solargraphy solarigraphy
