Soldering Jig with Vice Block

by code3 · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC
Triangles22.8k
UploadedFeb 26, 2022
⬇ 298 downloads ❤ 37 likes 👁 1.6k views
⬇ Download STL 👁 View Details

Description

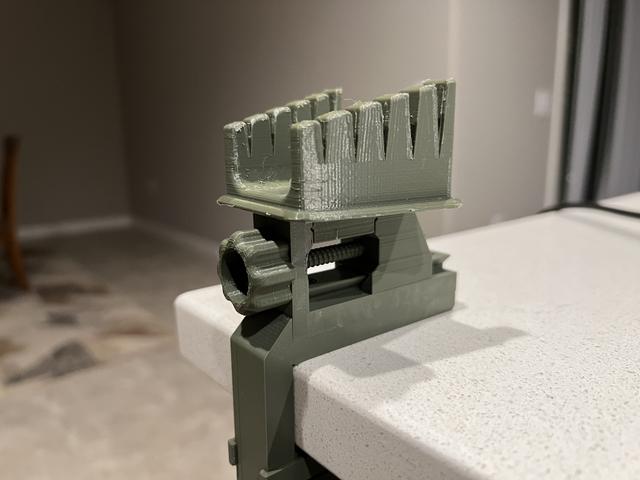

I added a vice block to werz 99's soldering jig. The cross profile indexes with HD_Creator's mini vice found here . The photo shown above is of the prototype and the file uploaded should index better since I moved the cross .5mm lower.
holder soldering solder wire

Originally published on Printables
