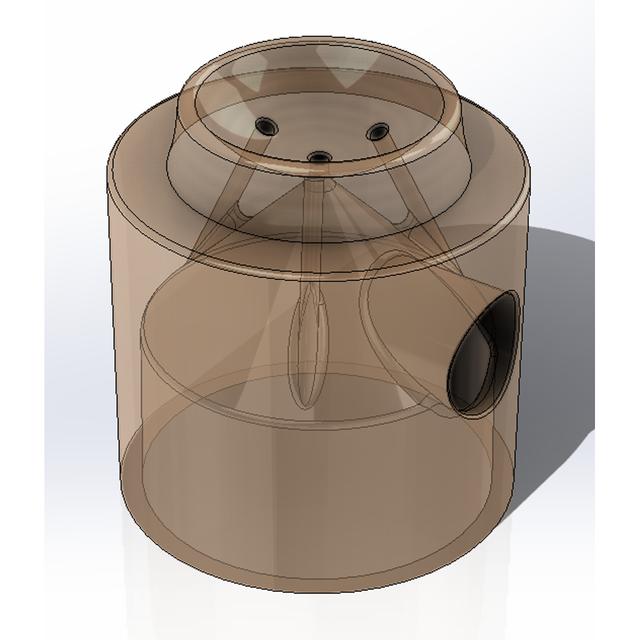

Speaker Dome Repair  (1" tweeter) Vacuum Adapter 3D model thumbnail

Speaker Dome Repair (1" tweeter) Vacuum Adapter

by Qube3Bot · via Thingiverse
FormatSTL
CategoryOther
LicenseCC BY-NC
UploadedApr 17, 2026
⬇ 5 downloads 👁 23 views

Description

This little gadget saved me much anguish over an accidental reference speaker's tweeter dome collapse. This device's neck is for a 31mm vacuum hose. A hole is provided for feathering the vacuum. The dome I corrected was a fabric dome. There were no creases in the dome and a full vacuum of a mini dust-buster what was required. To start with, I used a Variac to control the shop-vac's power to see how much vacuum was required to start the deformation. The light vacuum was taking out a little of the dent at a time. Noticing no wrinkles, I went full bore for the final air-forming to conform to the dome this tool provides. Bottom line, this fully solved the crisis. If you have some different dimension in mind that Mesh Mixer doesn't quickly fix, let me know what you are looking for. This is for a 1" tweeter dome and a 31mm [1-1/4"] hose end.
repair Speakers tweeter

Originally published on Thingiverse
