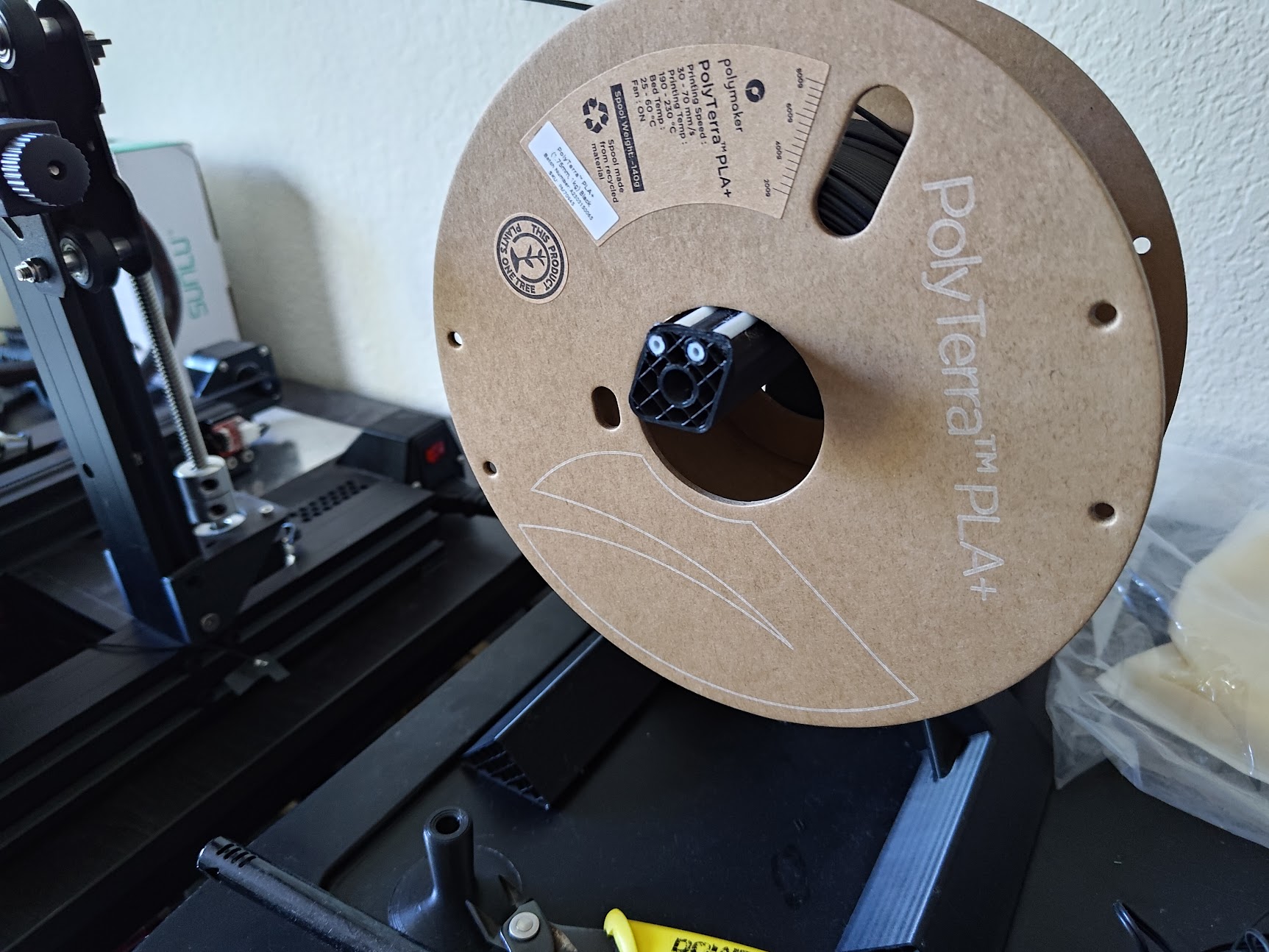

Spool holder with PTFE channels
by Shinespark · via Printables
| Format | STL |
| Category | Gadgets |
| License | CC BY-NC |
| Triangles | 4.0k |
| Uploaded | Sep 28, 2023 |
⬇ 36 downloads
❤ 6 likes
👁 401 views
Description
Remixed https://www.printables.com/model/131300-spool-holder to add channels for PTFE tubes like https://www.printables.com/model/526238-2020-spool-holder . I liked the idea of that model but needed a good desk spool holder like the original model. TinkerCAD: https://www.tinkercad.com/things/62pyduIiFkz-super-kup-stantia Let me know if the clearances need to be adjusted or any other changes need to be made. Printed this with 15% infill, lying down on its side, with 3 walls, but YMMV. The holes for the PTFE tubes are 4mm in diameter, but I had to use an Xacto knife to enlarge the holes at the ends to insert the tubes, and super glue in the channels themselves to keep them flush. The length of the PTFE tube is designed to be 95mm but if there are clearance issues, start with 95mm pieces and cut as needed. PS: I recently reseated the Y-axis on my Neptune 3 and the print failed near the top due to a skip as can be seen in the photo. I don't think this is an issue with the model (as evidenced by the many makes from the original).
