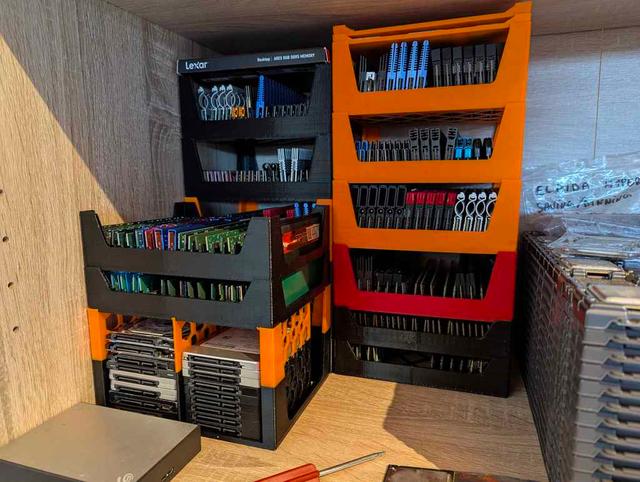

Stackable DIMM RAM Tray System (DDR1–DDR5) – Multi-Height, 18 or 29 Slots + 2.5" Drive & LGA1366 Trays

The original design was too limiting for me (no height adjustment) and material consuming. It now use less material and the lips have been upgraded so it doesn't slide that easily. I also made several design for different dimm height including a 2.5" drive tray as well as a LGA1366 tray. Everything is stackable except the sodimm addon which fits inside a tray. For the record the original 15 slots design will barely stack (I do not recommand using them) All the design I made : 18x 62mm tall - Fit nearly all memory with tall heatsink 18x 44mm tall - Fit Corsair Dominator without thin or heatsink and G.Skill Ripjaws 18x 35mm tall - Fit dimm with "Low Profile" heatsink 29x 35mm tall - Fit bare PCB dimm with no heatsink (more slot thanks to not heatsink/dimm can be placed closer) 28x sodimm addon - Fits inside all the 18x trays (even the 35mm version), occupying 8 slots 2.5" SSD HDD sata tray - Fits any height of drive, with a slight slope so it doesn't fall, 90mm total height 9x LGA1366 tray - Made for LGA1366 CPU Two single rank dimm with no heatsink and no back SMD can fit in a single slot back to back (though it's a bit tight), so that you can fit 58x SR dimm in the 29x version. It have been used/printed by many HWBOT users (where I shared it first). I've been using PLA and PETG, both are fine, if you want something solid, prefer 3 or more walls.
