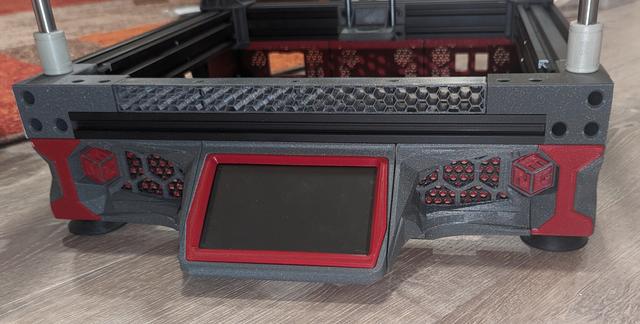

Stealth Skirts for Ender 3 NG Beta - BTT HDMI5 Screen

A tested modification of the beautiful Trident stealth Skirts for the Ender 3 NG which is an amazing mod for the old school Ender 3. I modified the screenbox and right side front wing to be able to use the BTT HDMI5 screen. Because the HDMI5 has USB and HDMI on the side I had to hollow out both the screen box AND the right front wing but once assembled you can't tell. I had to use the low profile USB-C and HDMI in order to get it to fit. https://www.amazon.com/gp/product/B0967W2W1M/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 https://www.amazon.com/gp/product/B01BXXK4CQ/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 Note that the modified front frame pieces require an M5 heat inset to mount the front foot and for the rear foot I made it so this screws directly into the 350mm 2040 uprights with the front hole tapped for M5. ----UPDATE----- 27 May 2024 - Added modified rear feet to screw directly into the M4 heat inserts in the original ENG-BLR and ENG-BRR frame pieces to work with the original NG printed uprights, they aren't elegant but should work just fine. If you want to print the skirts in 3 colors, a color change is necessary at 2.2mm and 4.2mm height. Original Trident stealth Skirts link (cant remix as it printables won't allow me to add this with the original E3NG). There are alternative screen boxes available on the original design below. https://www.printables.com/model/670769-voron-trident-stealth-skirts-cheese-grater-honeyco I have included front inverted frame pieces for the original stock E3NG Z as well as my own modified for direct triple Z stepper mounts. these include a second 8mm smooth rod for a triple Z MOD I will be uploading very soon. Print 2 of the listed left side fan holder, one for each side they are the same. Mandicreally made a modified screenbox for the waveshare 5" screen available over at Thangs, you could probably use the Right front ENG right front with with this screenbox but untested. https://thangs.com/designer/MandicReally/3d-model/Voron%20Trident%20Stealth%20Skirt%20-%205%22%20Waveshare%20-1024742 Mandicreally youtube channel https://www.youtube.com/mandicreally
