Steam Deck Deckmate Modular Mounting System Screw Base
by adubb3075 · via Printables
| Format | STL |
| Category | Gadgets |
| License | CC BY |
| Triangles | 8.0k |
| Uploaded | Aug 28, 2023 |
⬇ 166 downloads
❤ 33 likes
👁 2.5k views
Description

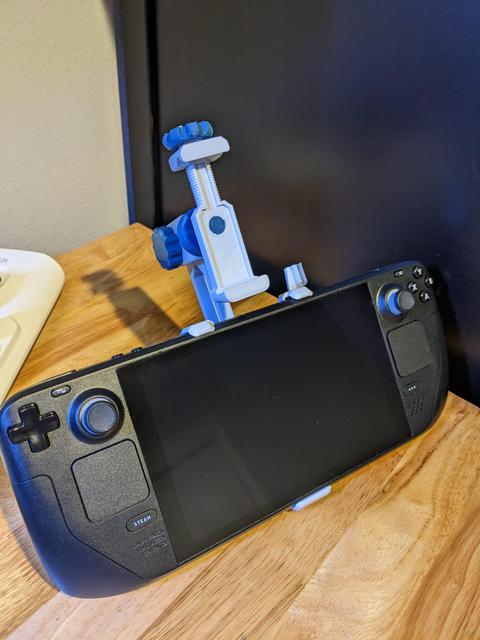

I wanted a way to mount my phone above my Steam deck screen. From https://www.thingiverse.com/thing:4756060/files use: 1x Arm_-_Threaded.stl 2x Knob.stl 1x ball_joint_screw.stl 1x Frame.stl 1x Ball_Joint_02mm.stl 1x Frame_up.stl 1x tightening_screw_02mm.stl 2x Gewindeverbindung.stl My part adds a 12mm screw to a steam deck spring mechanism (one of the Gewindeverbindung.stl screws into my part) There are two versions: 1 combines the m12 hole with part of the spring mechanism of the deckmate. You will need to supply the top half of the mechanism and springs. (Try printing the springs with https://www.printables.com/model/350324-steam-deckmate-printable-springs ) The other is a standalone m12 hole with m2 SHCS holes to mount to a standard version of the deckmate spring. For this version you can also print the very handy https://www.printables.com/model/415558-springless-deckmate and screw my part onto it. Print either as oriented or flipped upside down. Both require support.
Originally published on Printables
