Stress-Opticon V1

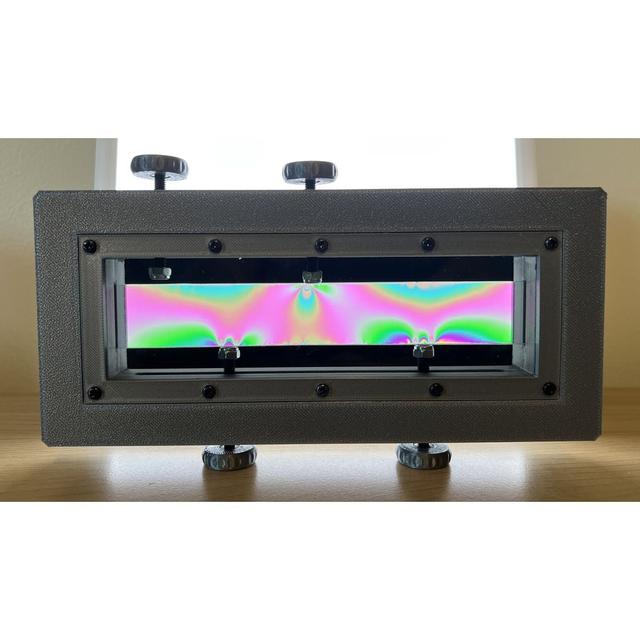

Please read through the assembly process before attempting this project The Stress-Opticon is a photoelastic device used to visualize stress distribution, concentration, and flow within materials. I created this 3D printed version because I could not find one to purchase Print Settings Supports: None (Note: the frame is split in half because support removal is very diffcult otherwise) Resolution: 0.2mm Infill: 75% min Wall Line Count: 3 Filament material: PETG 3D Printed BOM qty 4 Glue Clamp qty 4 Knob qty 4 Polarized Sheet Panel qty 4 Stress-Opticon Frame Stress Opticon off the shelf parts list qty 4 M5 x 40mm Socket Head Cap Screws https://www.amazon.com/dp/B07NTQ43LM?th=1 qty 4 M5 Lock Nuts https://www.amazon.com/dp/B000NBKLM8 qty 4 M5 x 10mm T-slot Nuts https://shorturl.at/fbYSx qty 1 Polarizing Film A4 7.8x11.8 inch Non-Adhesive Polarized Film Sheets https://www.amazon.com/dp/B0D2DK3XV9?ref=ppx_yo2ov_dt_b_fed_asin_title qty 1 super glue qty 20 M3 x 8mm hillips Pan Head Self-Tapping Wood Screws https://www.amazon.com/dp/B09CPHWX7P?th=1 qty 1 8.5” x 1” x .125" Acrylic bar qty 4 1" cut filament (1.75mm diameter) Inspiration: https://www.youtube.com/watch?v=ghKkG_7m7jM
