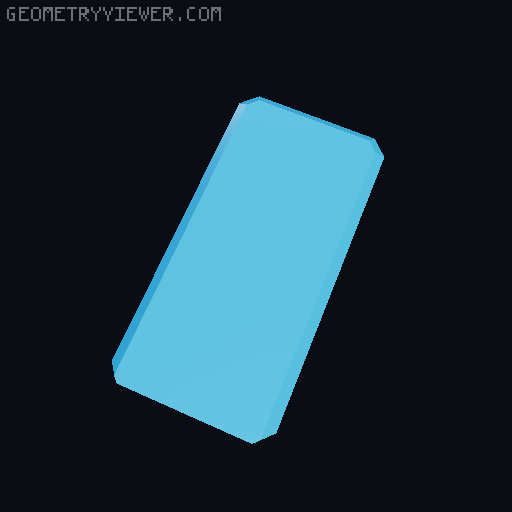

Sy's Peglock - Locking Pegboard System

This model uses my locking pegboard mount system for 1" standard pegboards. Magnet holes (if present) are designed for 10mm diameter, 3mm thick magnets. “Board Attachment” parts are universal to all models. Print with 3 perimeters and 0.3mm or thinner layer height for best results. I created this system of two interlocking parts after having many other printed pegboard mounts dislodge themselves at inopportune moments. This system levers into place and is locked down, compressing the mount against the board and preventing accidental movement. Included here are the test/template files, as well as the CAD for the base file I use to create mounts. Feel free to design your own mounts for the system and share them! NEW PARAMETRIC ATTACHMENT from ntressler7 This OnShape remix of the original board attachment allows you to resize important attributes to better fit your specific pegboard. Thanks to ntressler7 for this awesome upgrade! Current Mounts Using This System: Allen Key Set - Magnetic mount for Tekton metric Allen key set Curved Thin Hook - Bent and angled hook for supporting tools from underneath Divided Bin - A general storage bin with a central divider Folding Hex Keys - An angled holder for a folding hex key set or the like Gridfinity 3x1 Baseplate - A baseplate for gridfinity-compatible containers Large Hook - Large flat hook for hammers and other large tools Needle Nose Pliers - Magnetic mount for Workpro needle nose pliers Pegboard Bridge - 2x2 plate for connecting pegboards together Safety Glasses - Mount to hang impact-style safety glasses Screwdriver - Generic screwdriver (tapered cylinder) mount Small Needle Nose Pliers - Magnetic mount for generic “yellow” needle nose pliers Tape Holder - Designed by ntressler7 to hold a variety of large tapes Tape Measure - A rectangular disk sized for most tape measures. Thin Hook - Standard round hook for general hanging needs Wire Snips - Kobalt brand small wire snip mount
