Sy's Peglock - Wire Snips

by StellasFun · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-SA
Triangles14.9k
UploadedJul 28, 2022
⬇ 263 downloads ❤ 27 likes 👁 1.8k views

Description

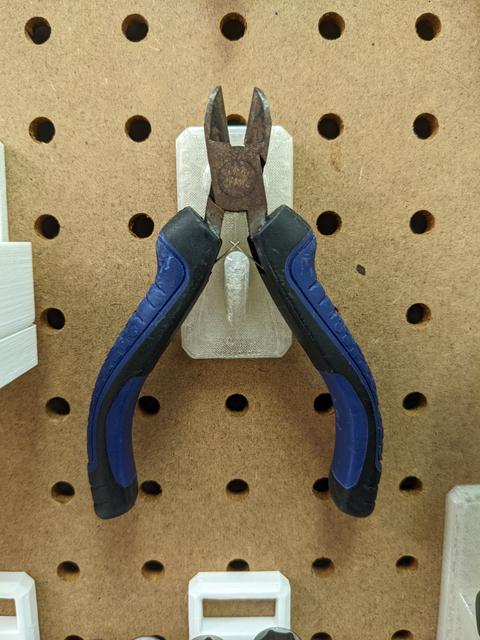

A hook with magnet above that connects to pegboards. Should work for many designs of snippers and pliers, but I designed it for Kobalt brand small wire snippers. This model uses my locking pegboard mount system for 1" standard pegboards. Magnet holes (if present) are designed for 10mm diameter, 3mm thick magnets. “Board Attachment” parts are universal to all models. Print with 3 perimeters and 0.3mm or thinner layer height for best results. To mount, fold the "Board Attachment" model, insert it into the pegboard so the triangular surface points up, then slide the mount over top. With a bit of force it should fully lock into place. If needed, use a small mallet or similar to mount/remove.
interlocking pegboard snips
