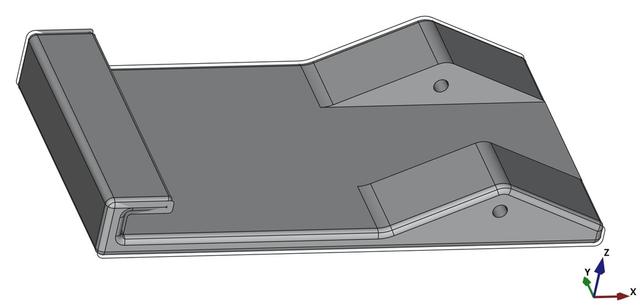

Tandem t: slim X2™ Insulin Pump Belt Clip

Ver: Extra wide version Design Comment; The design is much wider that the original clip to provide greater strength, a larger surface area for user comfort and also alleviates pressure points on thumb from regular use. 3D Printing Instructions: PLA Layer height 0.2mm Nozzle 0.4mm Normal temperature Filament and Bed Walls 4x (provide strength to the hinge mechanism) Supports on for the overhang at the bottom end of the clip and hinge bolt hole. Assembly Instructions: Retain the original wedge shaped spring Use M2 x 40mm 304 Stainless Steel Bolt & Nylock Nut, supplier details below: M2 Nylock Nut 304 stainless steel, available from: eBay Australia – [Dgkunkungl-14 M2 Nylock Nut 304 stainless steel] ( https://www.ebay.com.au/itm/124729582529?_skw=m2+nylock+nut+304+stainless+steel&itmmeta=01KMVGETA1FP38THSSTRHK0JR7&hash=item1d0a7663c1:g:DMgAAOSw64VgnKRe ) M2 Button Head Screw 40mm Phillips Head, available from: eBay Australia – [Ozmerchant M2 Button Head Screw 40mm Phillips Head] ( https://www.ebay.com.au/itm/276836410661?_trkparms=itmf%3D1%26aid%3D1110006%26rkt%3D3%26algo%3DHOMESPLICE.SIM%26asc%3D20200818143230%26mech%3D1%26algv%3DDefaultOrganicWebV9BertRefreshRankerWithCassiniEmbRecall%26pmt%3D0%26amclksrc%3DITM%26sd%3D276541222827%26sid%3DAQALAAAAEPo3S8xmehXn%2FUeQpk5ATMc%3D%26itm%3D276836410661%26noa%3D1%26ao%3D1%26rk%3D1%26pid%3D101224%26b%3D1%26mehot%3Dnone%26lsid%3D15%26meid%3D3fa45bc856454868bddc039d9298cf19%26pg%3D2332490&_trksid=p2332490.c101224.m-1 )
