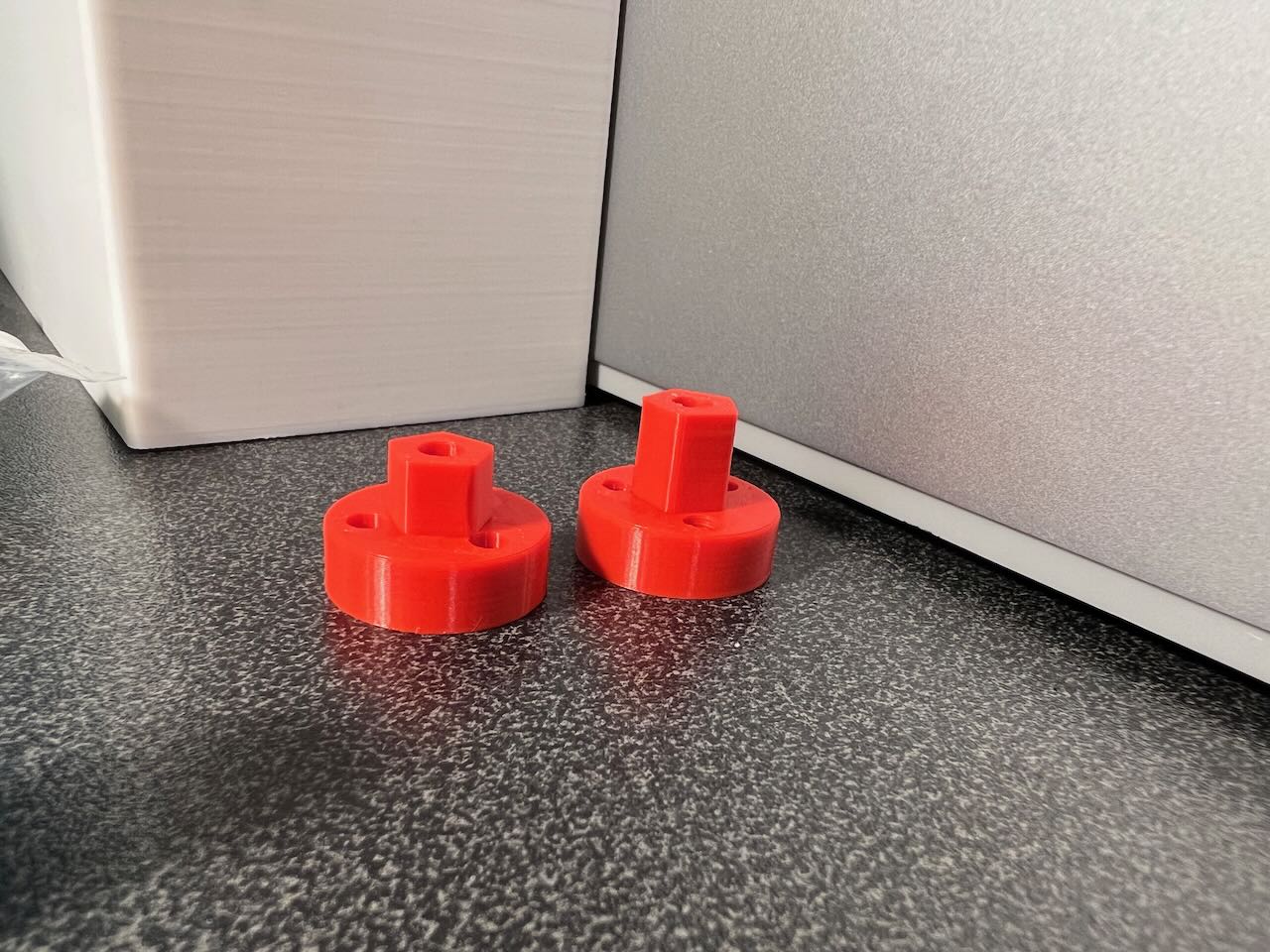

Tarmo5 D3536 alternate motor connector - mount 3D model thumbnail

Tarmo5 D3536 alternate motor connector - mount

by ckyr · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC-SA
Triangles3.8k
UploadedAug 6, 2023
⬇ 67 downloads ❤ 9 likes 👁 535 views
⬇ Download STL 👁 View Details

Description

Remixed the excellent adapter - motor mount designed by pmstick to properly fit the D3536 Brushless 1450KV Motor (https://www.amazon.com/gp/product/B084Q62BSK/) in Tarmo5. The motor mount (pmstick design) and pinion (supplied with the Tarmo5) are slightly longer than the originals (see attached photos) to accommodate the smaller size of the motor. The motor mount is attached on the motor using three M2.5 screw, 12mm long works well.
motor adapter

Originally published on Printables
