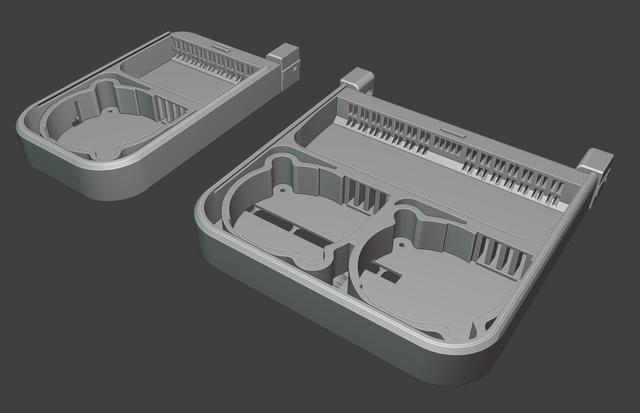

The Filter, Voron 2.4 - Magnetic Mounts

This is a mod of The Filter which removes the pogo-pin and allows mounting with standard 3x6mm N52 magnets. Wiring requires something like Molex Microfit connectors to allow the fans to be unplugged when removed. Important: Only crimp the connectors after routing the wires following the suggested routing paths. Keep these wires relatively short (10cm or so) out of the back of the fans, but make sure to provide a good 10-15cm spare wiring under the bed so you can pull the fans out and disconnect the plugs. BOM: Center Fan 8x 3x6mm N52 magnets 1x The-Filter-Mag-Mounted-Standard-Spacing.stl 1x The-Filter-Mount-A.stl 1x The-Filter-Mount-B.stl 2x M3x8mm BHCS 2x M3 T-nut Left Side Fan 4x 3x6mm N52 magnets 1x The-Filter-Mag-Mounted-Side-Fan-Left.stl 1x The-Filter-Mount-A.stl 1x M3x8mm BHCS 1x M3 T-nut Right Side Fan 4x 3x6mm N52 magnets 1x The-Filter-Mag-Mounted-Side-Fan-Right.stl 1x The-Filter-Mount-B.stl 1x M3x8mm BHCS 1x M3 T-nut Big thanks to the OG “The Filter” for the design.
