The Ultimate Cereal Container Filament Drybox - (un)Official Remix Nested Kit

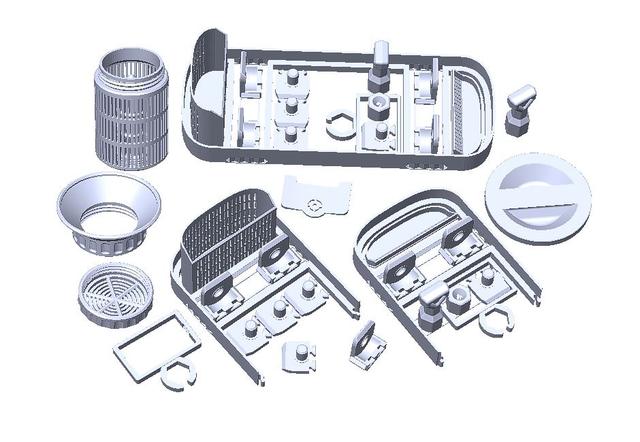

So was half way through printing my first 6 filament dry boxes when Mark dropped a remix. Will give the original a try but decided to print the rest in the new style. I wanted a full kit in a single STL, Still learning and adjusting settings so I slice before each print. Laid out the minimum parts needed for the core set up in CAD and made some adjustments. If you like my work and respect the time I've invested, I would greatly appreciate your gratitude https://buymeacoffee.com/bootemaker The main frame is pretty big. Almost 220mm long so I split the nested kit in half to accommodate small printers. Added tabs like model car kits and simple supports at the axle slots I don't have a dryer and cant print ASA yet so I hope to use the lids that come with the containers. just in case I drew a new lid seal with a different grip design with almost no bridging. Print with the grip down and no supports needed The original coupler cap errors upon cad import for me so I drew a couple new versions of those too. Added some taper on the nut and filament fit up plus a little detent in the grip area as well. have printed several already. R2 is very close to original so you can use the clip to stow it. I keep breaking them so R3 is heavy duty. I can see why Mark prints the bowden with TPU, the flex would make a world of difference. I'm thinking of just buying some rubber caps like these. https://a.co/d/0oG16qc I've included the one piece nest and the halved set in standard and with the HD cap. Also included the parts I created and the drill guide from the original model. My test prints are running now and look good. I will post my build and make updates as needed. Mark has some really cool options you should check out. I included only what I am going to use. will probable add hygrometers later. Below is the minimal BOM. There' s a very loose fit option for ptfe tube, super low drag Storage containers: https://amzn.to/4f6PgdU Bearings: https://amzn.to/4l9Lrrp Bowden couplers: https://amzn.to/3A3yBI3 Desiccant: https://amzn.to/3YgGhkA Tube: https://a.co/d/gnZsIzD Bowden joints: https://a.co/d/6GGCP4y Since I don't have a dryer, I'd like more desiccant inside. Check out this spool I.D. desiccant container. I use the 75mm half core version. Didn't modify his parts at all but went ahead and attached them here. https://www.printables.com/model/1367-malolos-silica-gel-desiccant-containers I realy like this other round desiccant bin below. Much stronger, got tired of cleaning up afte dropping one. https://www.printables.com/model/509152-stronger-silica-gel-spool-container I weigh them at initial load and subtract the supposed net weight then note the tare weight. then I can weigh and subtract tare for remainder. have several bowden tubes feeding my printers so I can easily choose of swap mid print. yeah, I want to automate that….. Update 5-25-2025; Coupler-cap R3 had an error. The small hole to capture filament before storage was too deep and created a hole in the end. I didnt see it in CAD because it was 0.01 mm away from a through cut. The Slicer rounded down and left an open hole. I just put a drop of glue on the few I printed before noticing. All parts have been replaced Update 6-2-2025; increase bearing clearance and hub shoulder, see photos. Only the newest revision stl's attached Update 6-18-2025; got an ask, so I added the hygrometer to the nested kit. Made a slight revision the the bearing carraige to make assembly easier. Added some vents to the desiccant lid although I got some stringing there. last, I acquired some cereal bins from another brand that had a larger lid indentation so I relieved the base frame, they use less filament now too. These are the R3 files. Update 6-21-2025; I had posted “RemixTabbed Lid Half R3.STL” with an error. Got it fixed, sorry. Update 7-9-2025 added thread on funnel for desiccant bottle
