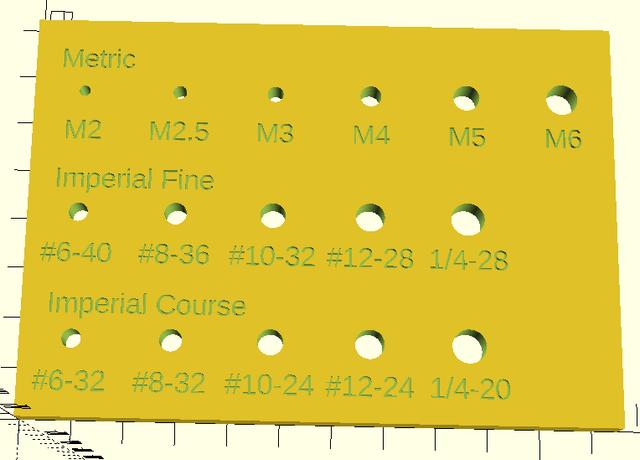

Thread Guage Block 3D model thumbnail

Thread Guage Block

by jimthing_2000 · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-SA
UploadedMar 17, 2026
⬇ 142 downloads 👁 62 views
⬇ Download STL 👁 View Details

Description

Determine the thread size of your bolts by threading them through the holes in this print. M2, M2.5, M3, M4, M6 UNF: #6-40, #8-36, #10-32, #12-28, 1/4-28 UNC: #6-32, #8-32, #10-24, #12-24, 1/4-20
3d printed tools ansi standard Bolt sizer bolts engineer gift fastener M2 to 14 Inch metric and imperial gauge nuts nuts and bolts screws Thread Gauge

Originally published on Thingiverse
