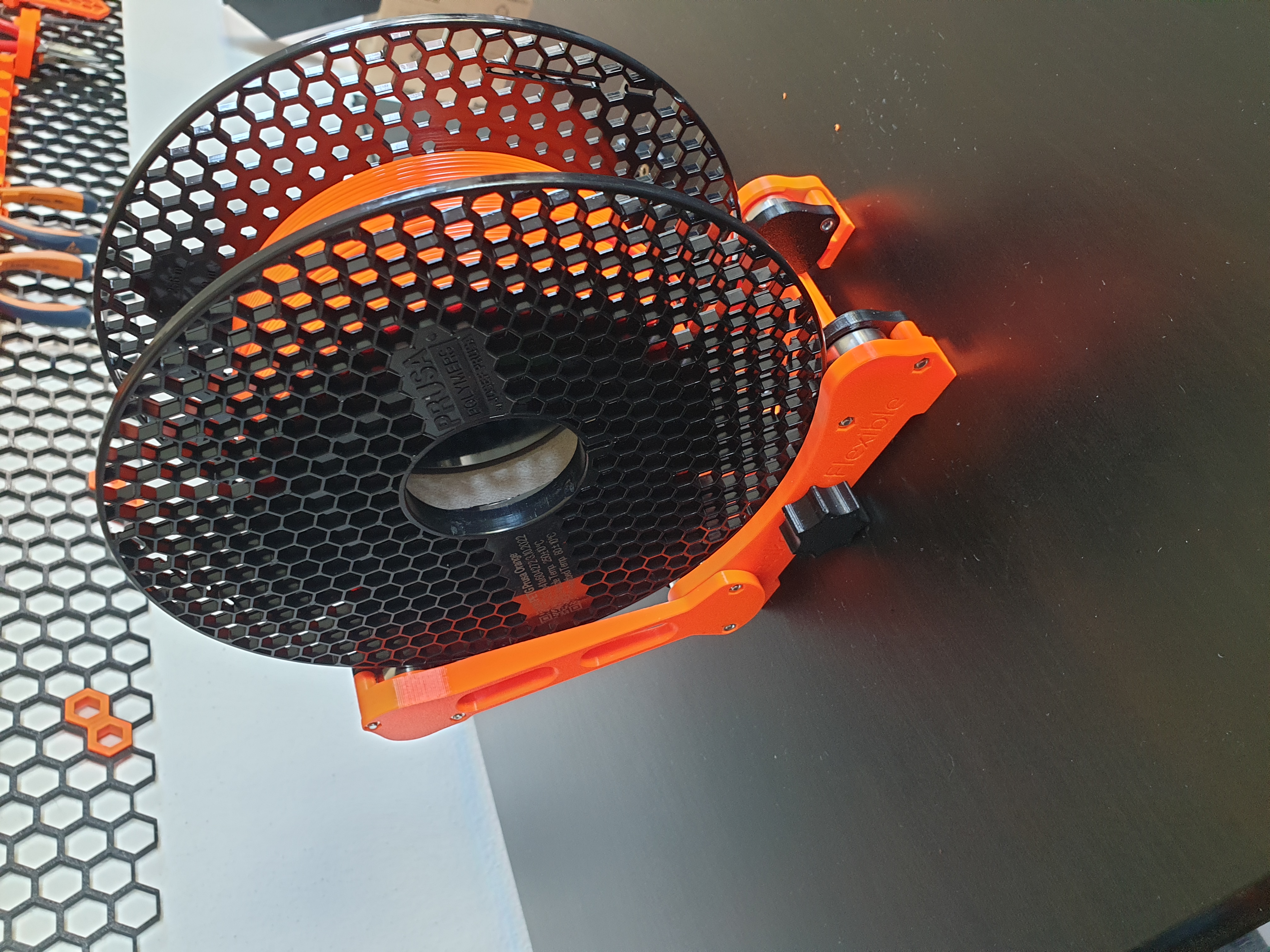

Tiltable Spoolholder Extension Lack Enclosure Lid 3D model thumbnail

Tiltable Spoolholder Extension Lack Enclosure Lid

by 3Dimensions · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC
Triangles17.4k
UploadedAug 8, 2023
⬇ 80 downloads ❤ 20 likes 👁 770 views

Description

I like the flexible spoolholder from @ Madaco and i want to place it on the top of my Lack Enclosure. So when i open the top of the enclosure the spool will fall down from the lid of the enclosure. So i designed an extension that prevents the falling down and i can use the spoolholder with the opened lid. The model fits for 200mm diameter spools. Conversion of “[Use M3 screws] Spool holder for Prusa MINI Flexible”: Remove the rear ball bearings and also the nuts. The extension fits exactly into the recess for the nuts. Now you can put the nuts back into the extension and tighten the ball bearing with the extension again. The ball bearings for the extension are fixed with the ball bearing holders. To do this, you also add the nuts and screw the ball bearing holder with the ball bearings. Finished Print Settings: No supports needed Layer heigt 0,2 infill 20% 0,4mm nozzle I used PETG. There should be no problems with PLA Bill of Materials: 2x Bearing 608ZZ or 608RS 8x M3x22 cap screw 4x hexagon nut M3 Orignal Spoolholder from @ Madaco : https://www.printables.com/de/model/62910-use-m3-screws-spool-holder-for-prusa-mini-flexible To place the spoolholder on lid of the enclosure i used this clamp from @ Bernd https://www.printables.com/de/model/15350-quick-clamp-pipe-clamp-16mm-rohrschelle-quick-sche If you have any issues, please feal free to contact me!
spool enclosure spoolholder flexible spoolmount lacktable lack bearing bearings spoolroller lackenclosure bearingholder bearingspoolholder
