Tolerance Tester Gridfinity Bin
by SJ · via Printables
| Format | STL |
| Category | Organisation |
| License | CC BY-NC-SA |
| Triangles | 10.0k |
| Uploaded | Oct 17, 2024 |
⬇ 17 downloads
❤ 6 likes
👁 130 views
Description

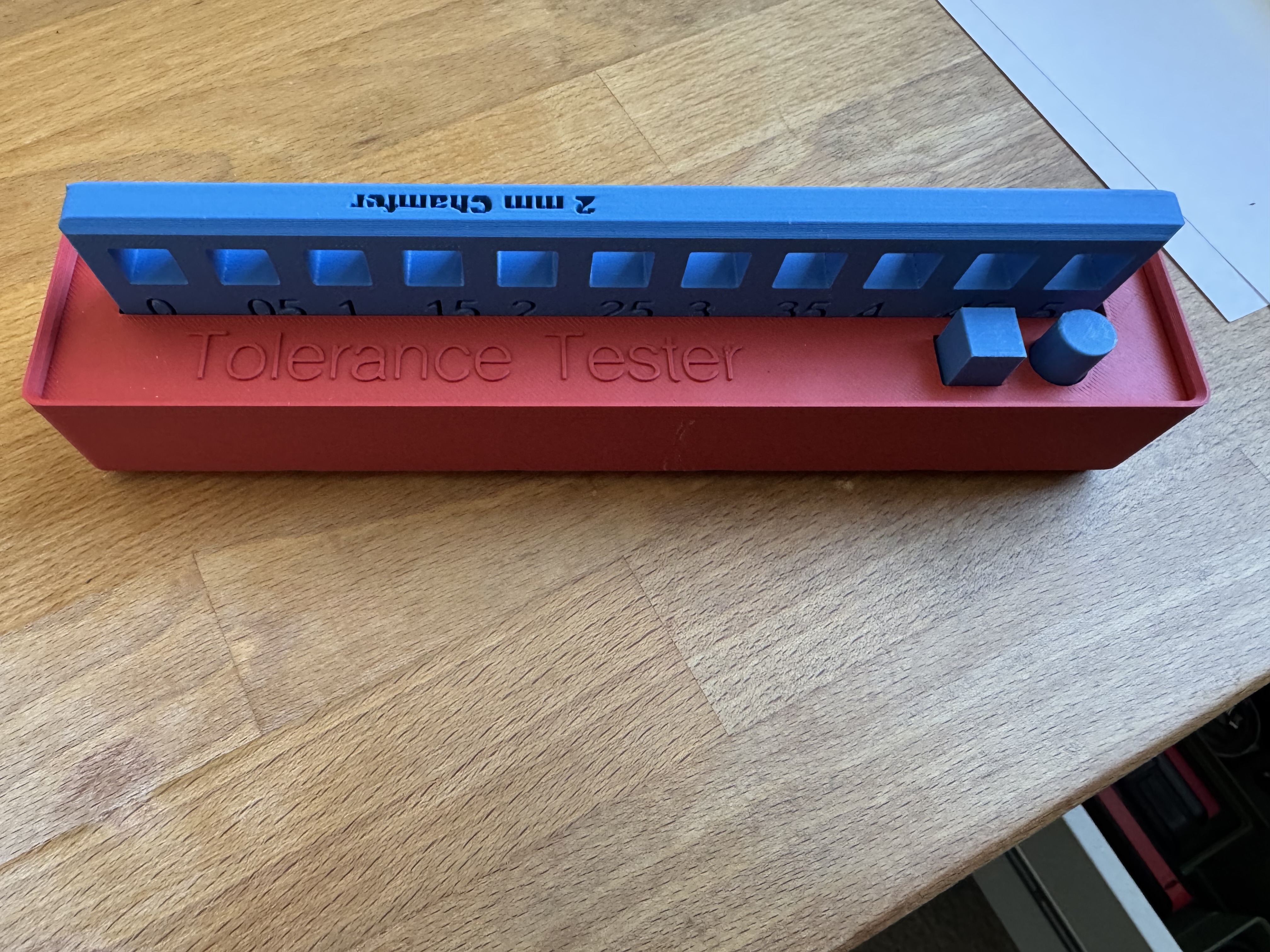

A simple 5x1x4 Gridfinity bin to store your tolerance tester. Not stackable because I didn't need stackability, but a stackable one would be a good idea because you should probably print a tester for each filament you use (that you need dimensional accuracy for). Important caveat: While I've selected the given model as the remix, technically this is built around the tolerance tester stl file that's provided in the I Like To Make Stuff Fusion 360 class . I believe it's the same (or at least a very similar) tester, but I'm not 100% sure. In any case, it just loosely holds your tolerance tester. Also gives it a fancy label since there was so much empty space. Nothing else to it really. Print Settings: Print however you like to print gridfinity boxes, but keep in mind this one has a bunch of solid space. For me: Infill: 8% Gyroid Material: PLA Matte .2mm layer height No supports Defaults are fine. You might consider an infill with 10% lightning though, to reduce plastic usage and print time further. I've started using that approach on some of my more recent prints.
