Tube cutter guide for werner_rh cheap drybox

by Dušan Šimonovič · via Printables
FormatSTL
CategoryGadgets
LicenseCC BY-NC-SA
Triangles2.4k
UploadedFeb 10, 2024
⬇ 30 downloads ❤ 1 likes 👁 395 views

Description

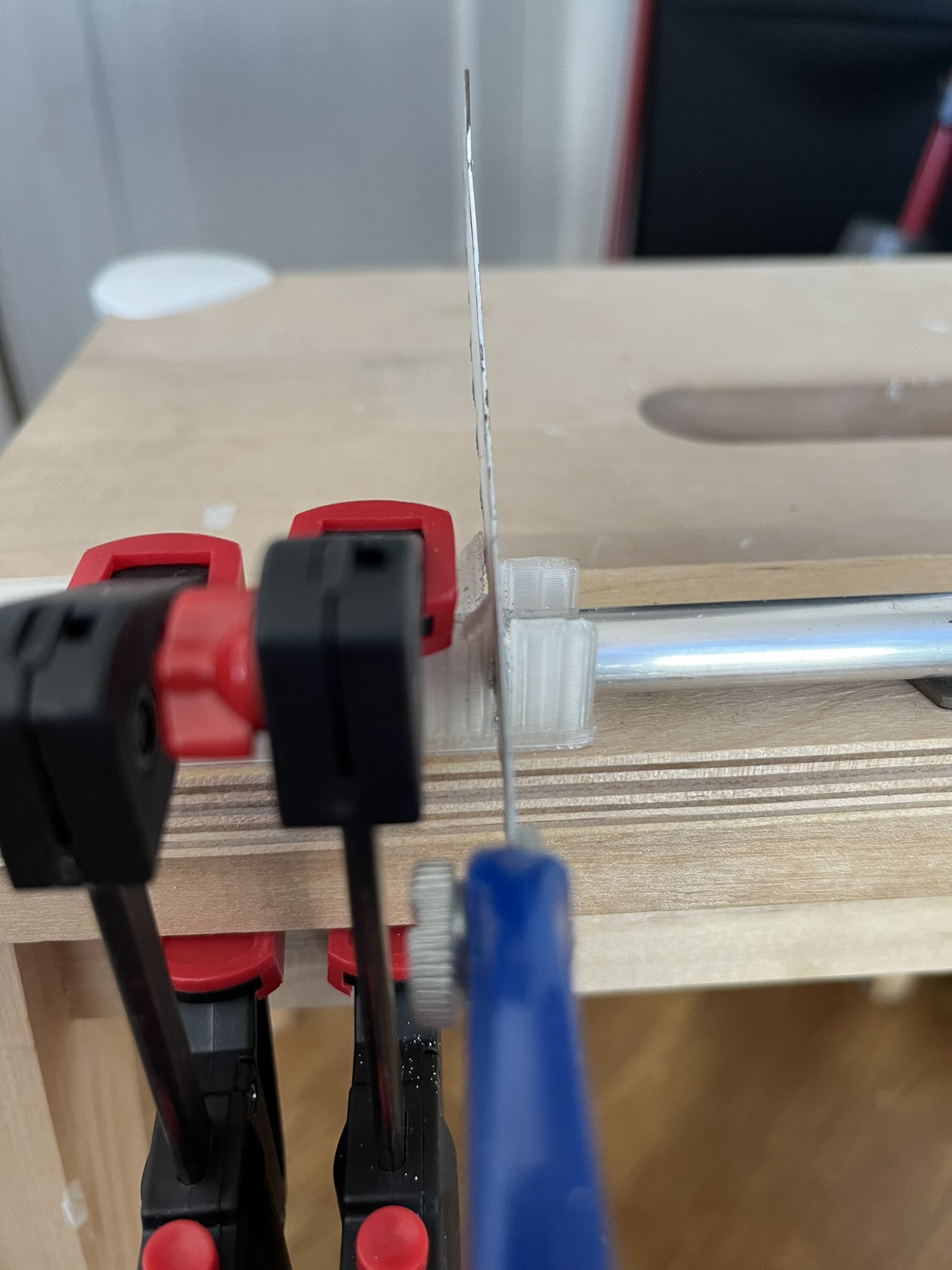

I made a few dry boxes from werner_rh design https://www.printables.com/model/634289-filament-dry-box-cheap-and-simple and this model is a little helper/aid for making tubes for dry boxes easily and precisely. Its a super simple shape to hold 10 mm aluminum tube as proposed in the original concept and help to cut it to 81 mm length. Created in Tinkercard - original file is here https://www.tinkercad.com/things/fOdGJEqbG62-wernerrh-drybox-tube-cutter-helper if you would like to adjust it somehow. The concept is simple - little lower cutout is for clamp to hold the tube, second clamp additionally holds the whole guide. I have cut about 10 of tubes with mine 1 of 1 first edition printed in transparent PLA without problems - my experience is, that the best way is to rotate the tube 3-4 times and not to cut directly to the bottom.
AI Analysis: This object is a mechanical part designed to guide a tube cutter for use with a drybox. It features a clear plastic holder that securely holds a tube, allowing for precise cutting of the tube. The part is constructed from durable materials and includes a handle for easy operation. Notable features include the precise alignment of the tube and the clear plastic holder that ensures the tube remains stable during cutting.
drybox cutter helper tubeholder
