Turbojet Engine Additions

by Pugwash · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC
Triangles1.9k
UploadedAug 20, 2024
⬇ 117 downloads ❤ 21 likes 👁 1.4k views

Description

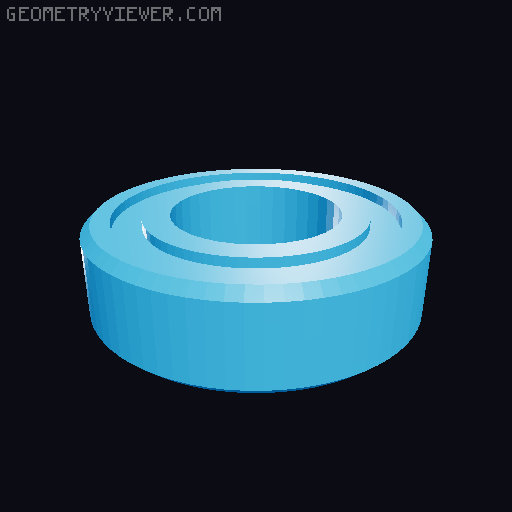

For a more static model for display, I've avoided buying the bearings by creating some printable cylinders to replace the 6003 and 6204 bearings. You need two of each of these for the final model. I wanted to include nuts and bolts around the full circumference at the top and bottom of the model, so I've created some small plates to fill the cut-out sections of the lpc and lpt casings. They are additions, so can be added without dismantling and re-printing any of your existing model. Nine more nuts and bolts are required. I've also added a wall hook - print a couple of these and you can hang the model on a wall with 1 or 2 holes in each hook. Space them level about 8cm apart and you can mount the model on the centre two casings.
