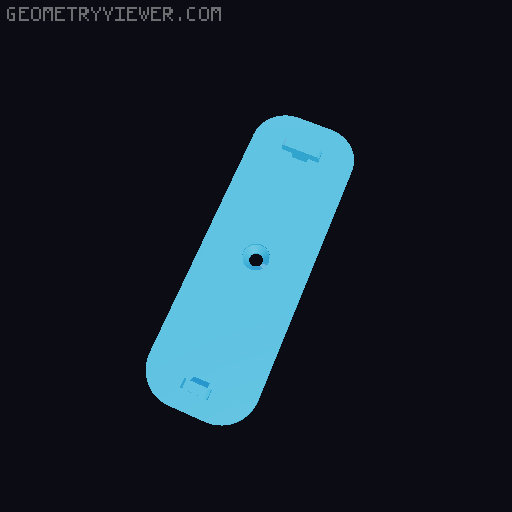

Tuya door sensor alternative mounting plate

Summary A replacement mounting plate for Tuya Zigbee door sensors that use 2x AAA batteries. This custom plate features the same T-clip mounting system as the original but adds multiple screw holes and rounded corners for better mounting options and screw clearance. I needed to customize the original design to better math screws which where already present on my door from a previous sensor. Also the original design caused a short circuit because the screws line up with the battery contacts. With this design you can print a thicker mounting plate so the screw are deeper countersunk avoiding the contact. Original device: https://aliexpress.com/item/1005011598742014.html Key Features Exact Fit: Maintains original dimensions (24mm x 70mm x 2mm) with matching T-clip configuration Dual T-Clips: Same mounting clips with chamfered tops for easy sensor installation Multiple Mounting Options: 3 pre-configured screw holes (customizable in the OpenSCAD file) Countersunk Holes: Allows for flush screw heads Rounded Corners: Matches the original device profile Fully Customizable: OpenSCAD file included with adjustable parameters Included Files tuya_door_sensor_plate.scad - Customizable OpenSCAD source file tuya_door_sensor_plate.stl - Ready-to-print STL file with 3 holes tuya_door_sensor_plate_holeCenter.stl - Ready-to-print STL file with only center hole Print Settings Material: PLA or PETG recommended Layer Height: 0.2mm or finer Infill: 20% Supports: Not required but recommended for the T clip overhangs Bed Adhesion: Not required Customization The OpenSCAD file allows you to adjust: Screw hole positions and sizes Corner radius T-clip dimensions and positions Plate thickness
