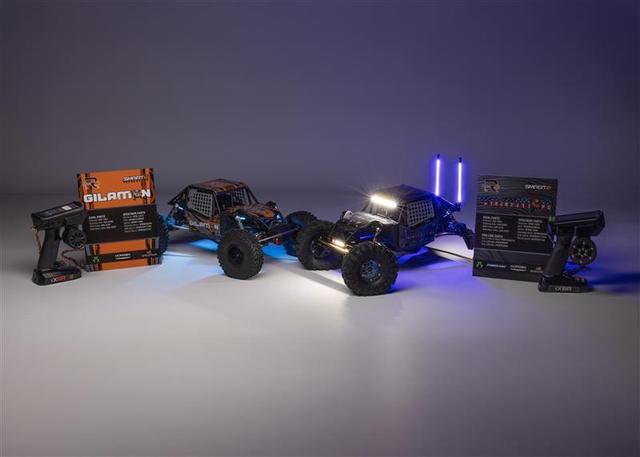

Ultimate SR1015 Gilamon 3D Print Files

These are all the files you need to create the Ultimate Gilamon crawling rig. Why is it Ultimate? Because it uses all 10 channels of the Spektrum SR1015 receiver, this is achieved by having the following parts and channel setup: Specific Parts: SR1015 (Receiver) SPMXSEMC22 (Motor/ESC) 2 x SPMSS7110 (Servo Winch) REEFS60 (LP Winch Spool Kit) Channel Setup/Count: Ch. 1 - Throttle Ch. 2 - Front Steering Ch. 3 - Rear Steering Ch. 4 - Rear ASD Ch. 5 - Transmission ASD Ch. 6 - Front ASD Ch. 7 - LED Toggle Ch. 8 - Front Winch Ch. 9 - Rear Winch Ch. 10 - ESC Drag Brake Even though this is the original setup, an alternative electronics tray has been added for those that aren't using an SR105, LP winch, and LP spool. The rear winch can be a regular size winch, but the extended length will probably interfere with the cage when putting it on and taking it off. We tried to keep everything inside the skid width to ensure gaining access to the electronics is as easy as possible. **Note: The winch guides can be printed in TPU, but they were successfully printed and installed in PLA with a lower layer count and proper orientation (see .3mf file). Specific Hardware Needed: 4 x M3x5mm screws (Rear Winch Ears) 4 x M3x16mm screws (Spool Cover) 3 x M2.5x10mm screws (Winch Guides) 3 x M2.5 nuts (Winch Guides) 2 x M2.5x10mm screws (Light Bar) Please leave a comment with any changes or improvements that you suggest, and we'll try to make them happen to help give you the best Gilamon experience possible. Thank you and enjoy!
