Umikot 51s
by elmoserafa · via Printables
| Format | STL |
| Category | Home |
| License | CC BY-NC-SA |
| Triangles | 269.7k |
| Uploaded | Feb 23, 2025 |
⬇ 820 downloads
❤ 84 likes
👁 5.4k views
Description

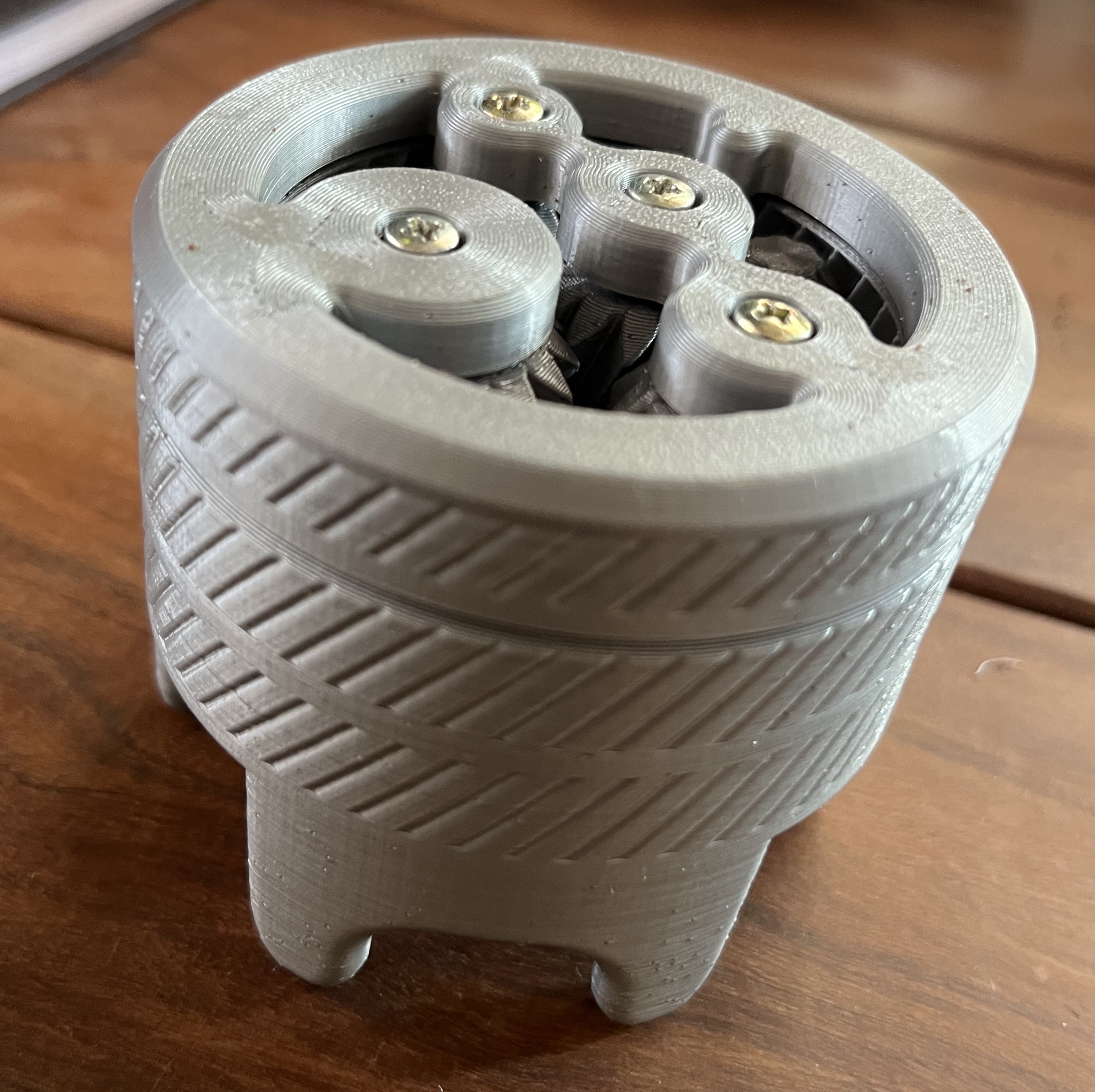

The stl files work for my case, in you'll need (in addition to the materials pointed out by redfoxdude) 4 3x10x4mm bearings (pressfit into spinring) and about 40x 4mm ball bearings. EDIT: forgot to mention I also incorporated heatset inserts (m3x5mm) in the planetary gears. Reworked kinda sloppily from @redfoxdudes design on onshape – you can adapt it from there as well if you want to, but some of the configuration features may be broken, so adapt at your own risk. https://cad.onshape.com/documents/8fed27da3ccb16ffc1fb4d09/w/2a17cf10ec599bef5aafe909/e/a5a75a749be955674b0bdf3c? follow instructions from Umikot58s page EDIT 04/2024: Added a new lugstand (Lugstand_DEDICA) for bigger (5x3mm) magnets and also space to fit more snug to the standard dedica portafilter. Added a new spinring version to be used with a handle. Handle is connected with a heatset insert and m3 hardware. EDIT 02/2025: Updated the spinring with handle to better hold in the bearings.
