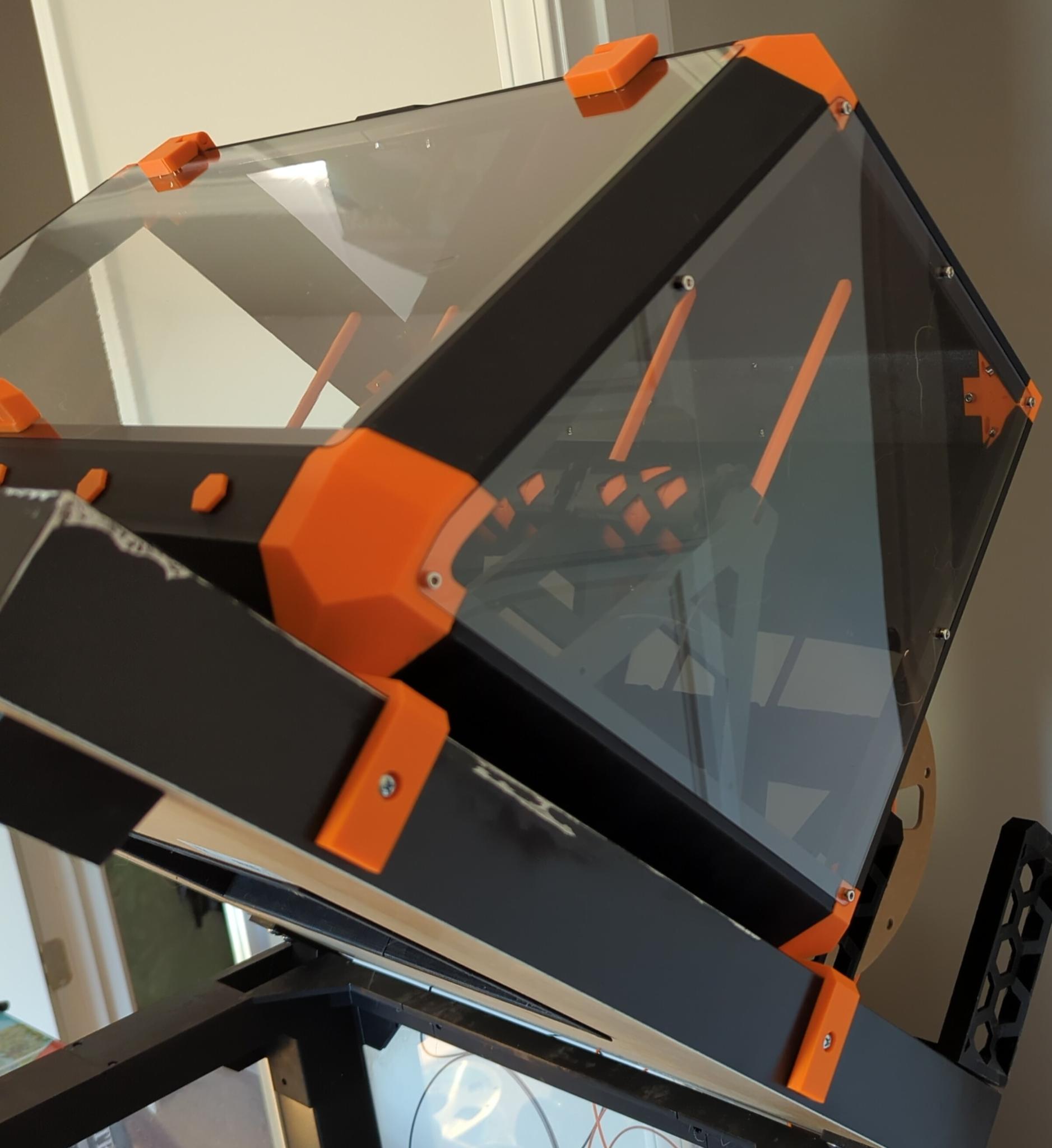

(Un)origonal Drybox Lack Mount 3D model thumbnail

(Un)origonal Drybox Lack Mount

by Meierme176 · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC-SA
Triangles2.7k
UploadedOct 20, 2024
⬇ 62 downloads ❤ 18 likes 👁 465 views

Description

I needed a mount that would hold the (Un)origonal Drybox to the top of a Lack enclosure. So I made one. You use the screw hole on the bottom four corners to attach the mounts. I would suggest using a longer screw than the M3x6 that normally goes there, though I did get it to work on one corner. For the other three corners I used a M3x12 because I had a bunch left over from another build. DON'T tighten them all the way down. Just tight enough that it takes a little effort to move them back and forth in the slot. If you really want to tighten them down you can center the box on the Lack top, push the mounts flush with the sides, and mark that point. Then you can tilt the enclosure back, line up your mark with where it should be and tighten them. For the screws on the sides, I used my trusty 8 x ¾" self tapping screws (because they're great). The inner hole is .18" in diameter and the outer is .33" in diameter. I printed them out of PETG, used 5 layer wall thickness and 25% infill. Probably overkill, but I didn't want it falling.
AI Analysis: This is a mechanical part designed for mounting a drybox, which is a type of storage container. The object features a rectangular structure with transparent sides and orange accents, providing a secure and stable mounting point for the drybox. It is constructed from durable materials to ensure longevity and stability.
drybox mount lack unorigonal
