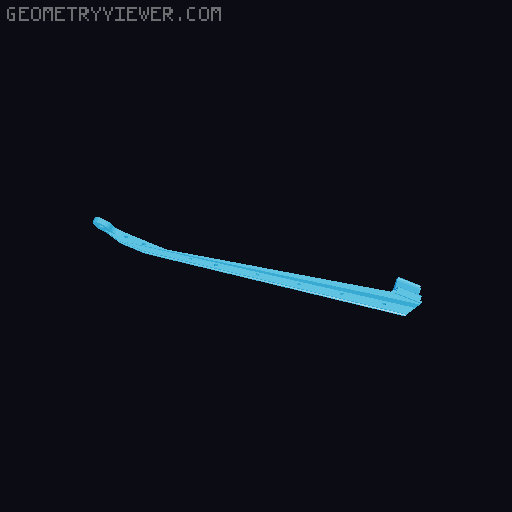

Updated Generic Camera Mount for SV06 & SV06+

This is an Update to the Generic Camera Arm for SV06 & SV06+. To Date it is my most popular viewed and download model. So now I'm revising it. It now Includes a Small Lip on the block to prevent arm form twisting. The single screw connection the arm to the Y axis Motor creates a pivot point for the arm. Including 2 Lips on the side and bottom prevent the arm form pivoting and allow it to now include addition angles for the block to hold the arm. This also remove the tendency for over tightening the arm to stop the twisting. We don't want to strip out the motor mount point like I almost did. ;) Angels for the arms to give a slightly better view and in some cases allows for slightly easier focusing for manual focus web cams. A changed the M3-25 to a more easily found M3-16 screw. It sill uses the 1/4" x 3/4" Stainless Steel Hex Bolt. I've Only included the 90mm and 185 mm versions, but included 3 of each: 0° v5-90mm , v4-185mm @ v6-275mm 10° v4-185mm 20° v4-185mm & v5-90mm 30° v5-90mm If anyone wants any additional versions uploaded just let met know. I have created blocks for: 0° 10° 20° 30° 45° This version also included a smaller Bolt holder. I understand these arms can also be used with Prusa i3 printers Printed in Inland Tough Blue PLA 0.2 mm Layer Height 15 % infill. All Arms Models are designed using TinkerCad. What can I say, it is easy to use and it is free. By Request: I've added a Bolt Holder for an M6-1.0 x 20 mm Bolt. As an alterative to the 1/4" x 3/4" Stainless Steel Hex Bolt. Apparently some Web Cams us that thread. Update 11/2023 Added v7 - 275 MM version, largest version able to print on the SV06. Added v7 - a 350 MM version. Can be printed on SV06+, too large to be printed the SV06.
