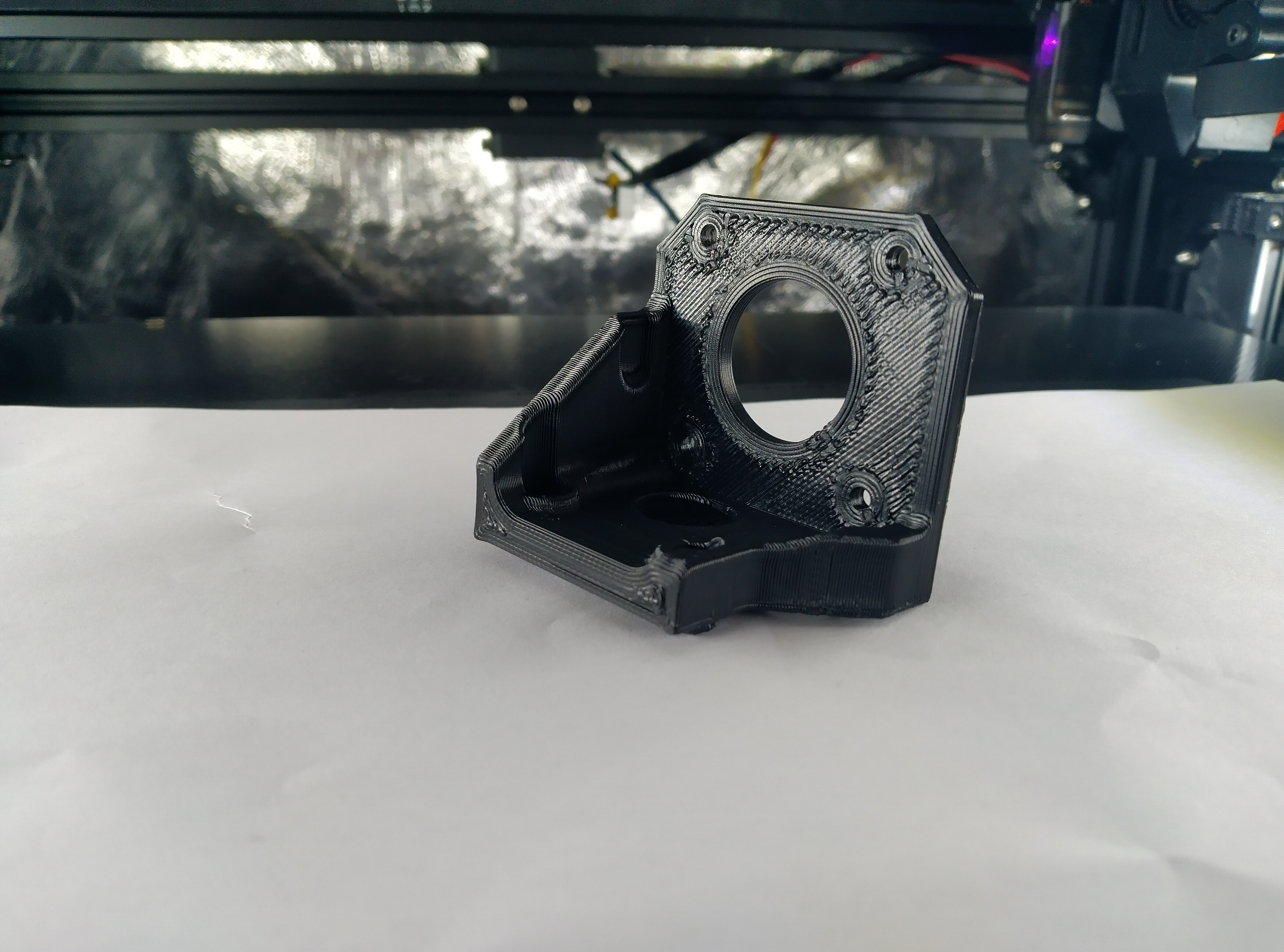

*Updated* HMG7 Creality Single Gear Rear Mount (Remix V2)

the first time i printed this i had a hell of a time trying to put it together as i had to have the tension adjustment bolt in place and one of the motor screws as the tension adjustment bolt blocks it being put in or removed and when i did get it together i would not have been able to load filament as there was not enough room to let the end of the lever move so here is a remix to fix this now updated in Fusion 360 for a much neater model Changes (from the original R 1/2.1 version): -cut left side for lever arm, filleted and chamfered to match -lowered right side for plastic extruder body clearance, filleted and chamfered to match -cut hole for tesion screw, added .25mm chamfer -added 0.5mm to the angled face next to the tension bolt hole so it didnt end up too thin, then fileted and chamfered edges to match -noticed that the filament path hole was slightly off centre (maybe .2-.3mm), adjusted it a little so i would stop noticing it lol for printing follow original instructions Assembly Order: 1. remove all screws from the extruder body and place it in the mount 📷 Image redacted — claim this model to add your own media 2. put in the 3 screws that secure the extruder and motor to the mount 📷 Image redacted — claim this model to add your own media 3. attach the extruder arm and then put the spring in 📷 Image redacted — claim this model to add your own media 4. lastly put in the tension adjustment screw 📷 Image redacted — claim this model to add your own media
