Updates to Hiwin Linear Rail on PRUSA I3 MK3S+

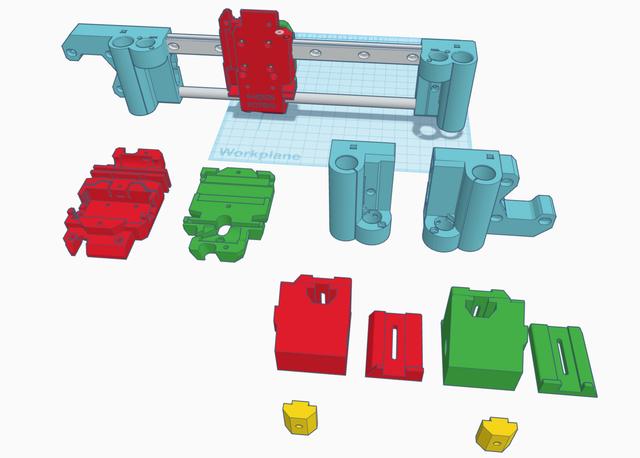

UK Google translate: Updates to Hiwin Linear Rail on PRUSA I3 MK3S+ Here are all the printed parts needed for rebuilding/updating your PRUSA I3 MK3S+ I have spent a lot of time adapting the original plastic parts so that they fit and work with the Hiwin MGN12 Linear Rails and trams. I have them myself on 3 of my PRUSA I3 MK3S+ and it works perfectly. They are very quiet compared to the round rods with LM8UU Bearings. Y plastic parts with T-Nuts: Right and Left plastic parts with T Nuts with threaded bushing hole. Y Linear Rails Right Front plastparts.stl Y Linear Rails Left Front plastparts.stl Y Linear Rails Right Back plastparts.stl Y Linear Rails Left Back plastparts.stl Y Linear Rails T-Nuts plastparts.stl X Plastic parts Right and Left END ENGINE IDLER: The Original plastic parts from Prusa have been converted so that the Hiwin MGN12 Linear Rails fit in the plastic parts. Hiwin bracket X End Motor plastparts.stl Hiwin bracket X End Idler plastparts.stl Extruder Plastic parts for X Carriage front and back: Hiwin bracket X Carriage front.stl Hiwin bracket X Carriage back.stl DK: Opdateringer til Hiwin Linear Rail på PRUSA I3 MK3S+ Her er alle de printerparts der skal bruge til ombygning/opdatering af din PRUSA I3 MK3S+ Jeg har brugt en del tid på at tilpasse de originale plastparts, så de passer og virker med Hiwin MGN12 Linear Rails og sporvogne. Jeg har dem selv på 3 af mine PRUSA I3 MK3S+ og det virker perfekt. De bliver meget stille i forhold til de rund stænger med LM8UU Lejer på. Y plastparts med T-Nuts: Højre og Venstre plastparts med T Nuts med gevindbøsnings hul. Y Linear Rails Højre Front plastparts.stl Y Linear Rails Venstre Front plastparts.stl Y Linear Rails Højre Back plastparts.stl Y Linear Rails Venstre Back plastparts.stl Y Linear Rails T-Nuts plastparts.stl X Plastparts Højre og Venstre END MOTOR-IDLER: De Originale plastparts fra Prusa er lavet om så Hiwin MGN12 Linear Rails passer i plastparts. Hiwin beslag X End Motor plastparts.stl Hiwin beslag X End Idler plastparts.stl Extruder Plastparts til X Carriage front og back: Hiwin beslag X Carriage front.stl Hiwin beslag X Carriage back.stl Hilsen Leif Lumby Henriksen Odense3D: https://www.facebook.com/groups/2911561982402973
