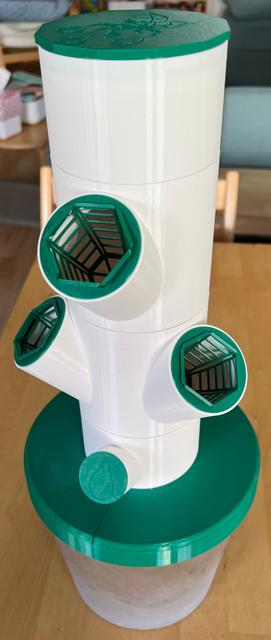

Upgraded Modular Hydroponics Tower - AddOns

At first many thanks to Conr8r for the Upgraded Modular Hydroponics Tower . I made some addons so you can build your own tower with even more flexability. These parts are compatible with his design. I designed additional shelfs with one and two ports. So you can place your tower in a corner. Each design is availible in three versions. Classic, just like the original Beam, with additional supports for the pipe (max 20mm outer diameter) Mesh, with dripping holes (beware of roots clogging the holes) The Module-4 has to bee seen as an experiment to support 4 way tubes. I don't think it will fit nicely, but you are free to try. I won't print this version, cause i don't fits my needs. I also modified the nozzle, supporting pipes with 10 and 8mm inner diameter directly. Additional spacers allow you to give your larger plants more space. Each spacer is also availible in an half height variant. Normally you should use the NoTurn Spacers otherwise your other modules will be 60° off. The basin now has more dripping holes. One has the original six larger holes, with additional smaller ones. The other one only uses smaller holes. The Growth Support uses M3 heat inserts and short M3 (10mm) screws to mount the rail to the ring. Additional parts used: Hydroponics Net Pot Modified Net Pot Ring Changes: 05.07.22 Added filling module with cap Added parts for a mount, suitable for pots with 19,8mm in diameter 06.07.22 Added a cap for the filling module which fits tighter 11.07.22 Added a Filling Module where the funnel is rotated by 60° 25.07.22 Added Spacers without the 60° turn, so no displacement of other Modules 08.08.22 Added Growth Support 05.09.22 Added mounting module with tabs Additional filling module with 2nd 15mm intake 06.09.22 Added a second mounting module with tabs 19.03.2023 Added a Bucket Lid Mount with Support Adapter Print instructions Supports: not needed Resolution: 0.2 mm Brim: recommended for spacers and modules but not the basin Infill: 15% Filament: PETG or similar
