V-Core 3.1 120mm Bed fan
by Ferfi · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC-SA |
| Triangles | 88.7k |
| Uploaded | Oct 28, 2024 |
⬇ 11 downloads
❤ 7 likes
👁 290 views
Description

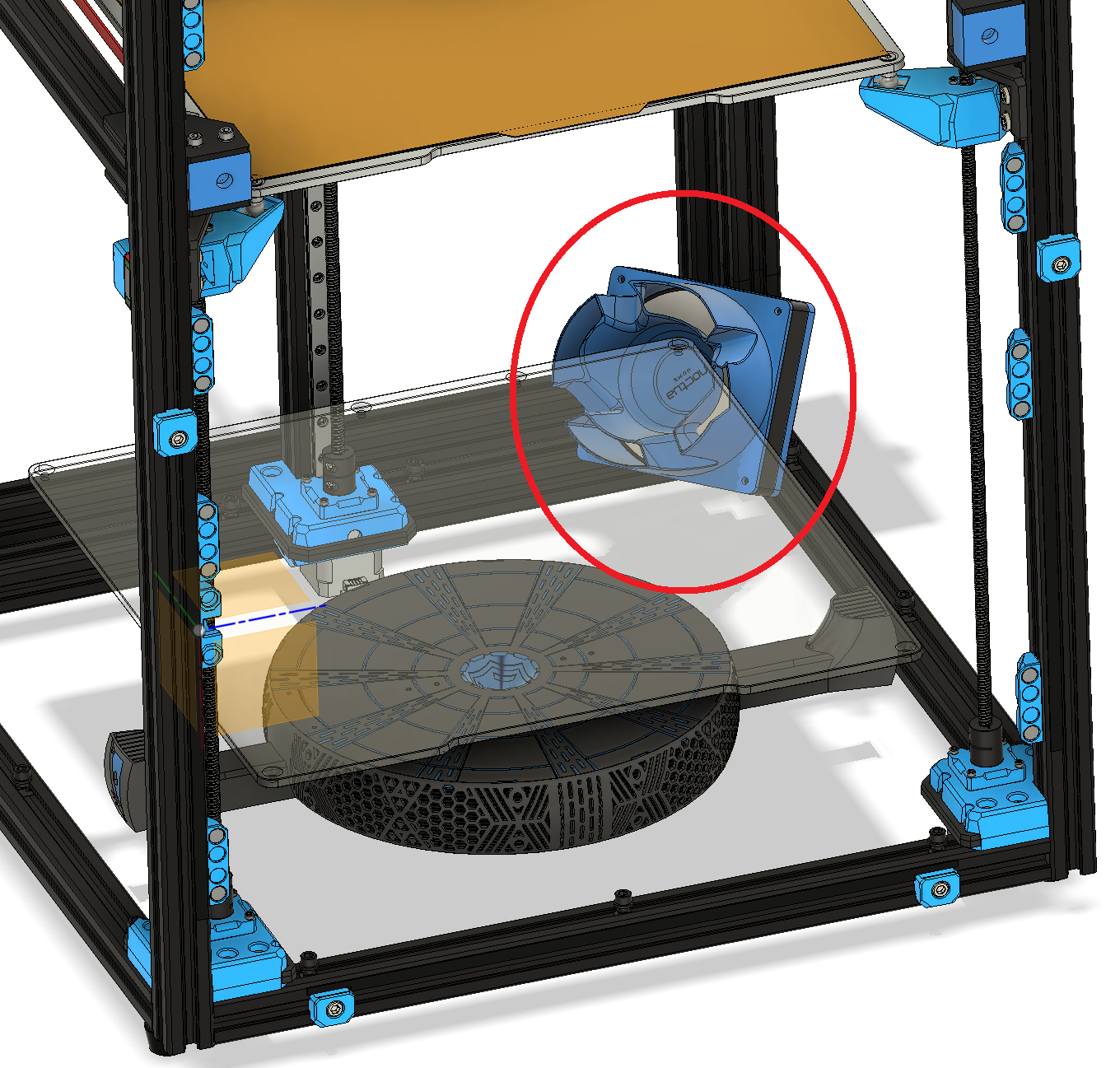

This uses Noctua's fan duct geometry https://www.printables.com/model/887071-nv-aa1-12-airflow-amplifier which is attached to frame and pointed at bed. Duct is cut so that full bed travel is not limited. The lower the fan is the better - I'm not sure how much clearance in Z axis there is. It should be 10 mm but…. Best bed position is around Z= 250 - 300 mm Tightening the M6 bolt to 3030 extrusion is a bit of a pain but it's possible. Worst case tighten just the front bolt - it should be fine. Can be printed without supports if you'll survive the one small area with a few unattractive layers before the print catches back on.
