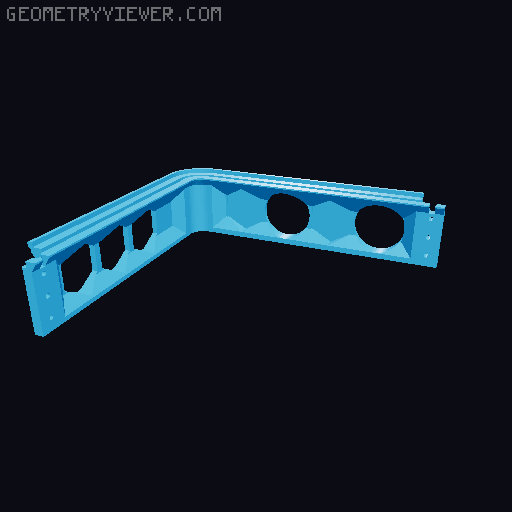

Ventilation with Fan Mounts

Update 11.08.2023: Added the parts for the version with raised top edge. ----------------------------------------------------------------------------------- Remixed to have 4 40x40mm fans for ventilation with the door closed. You will need 16 M3x5,7 threaded inserts and 16 M3 screws. For the lengh of the screws take your fan thicknes and add 5 mm, so for a 40x40x20mm Fans you should use M3x25mm screws. I used Nocuas A4x20 12v fans on a splitter with their NA-FC1. Because the Noctua fans have a groove for the screw I only used M3x20mm screws. Now I can print with the door and the vents closed and only have 30°C inside the chamber. And if I need to print with a high chamber temperature I printed covers for the fans in TPU so no cold air can get in and no hot air can get out.
