VHB Mount for Bento Mini

by bigzachattack · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC
Triangles2.5k
UploadedMar 30, 2026
👁 12 views

Description

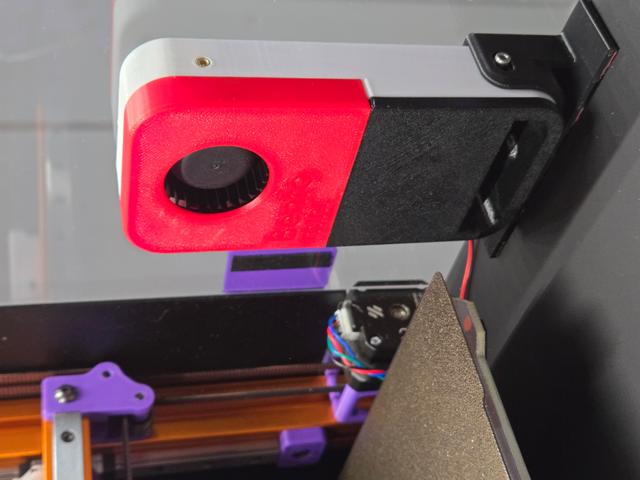

This is a remix of the Bento Box Mini V0.2 bottom cradle , replacing the extrusion tab with a flat plate for VHB tape mounting to any flat surface. I designed this to mount a Bento Mini to my Voron Switchwire deck plate which doen not have an extrusion for attaching. There are two versions included: one with alignment grooves for 9 short strips of 10mm wide VHB tape and one without. Print Settings: Material: ASA/ABS/PETG Orientation: Back side on bed Layer height: 0.2mm Walls: 3 Infill: 40% gyroid Supports may be needed under the cradle overhang Hardware: 2 × M3x6mm BHCS VHB tape
filter mini air bento switchwire
