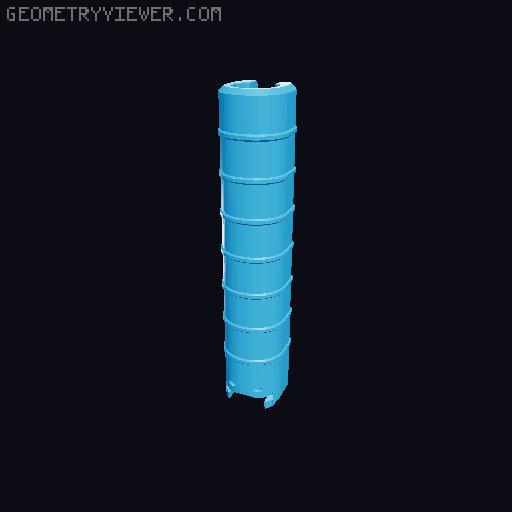

Vulture's Leg - Shortened Remix! 3D model thumbnail

Vulture's Leg - Shortened Remix!

by jjeeffff · via Printables
FormatSTL
CategoryOther
LicenseCC BY-NC-SA
Triangles8.2k
UploadedJan 20, 2026
⬇ 137 downloads ❤ 151 likes 👁 3.6k views

Description

This is a full replacement for the entire front-assembly of the Vulture blaster. This means that every part of the breech, barrel, and magazine assembly have been redone. The only additional hardware needed to assembly this front-end are a handful of M3x8mm screws. This remix reduces the magazine capacity to 5 darts. You may need to cut the magazine spring shorter for it to fit in this shortened magazine tube without doubling over itself. The exact length needed varies by spring, so cut very slowly and incrementally - try to keep the spring as long as possible for consistent feeding. Add a barrel-sized o-ring between the muzzle and the threaded cap and screw the cap on tightly to hold your barrel firmly in place. My pictured build features a 20cm barrel for it to fit flush, but longer barrels also work. My build also has some minor customization to the receiver cover, grip, and rail, but these are cosmetic and personal touches that I do not plan to upload files of.
blaster nerf lever vulture
