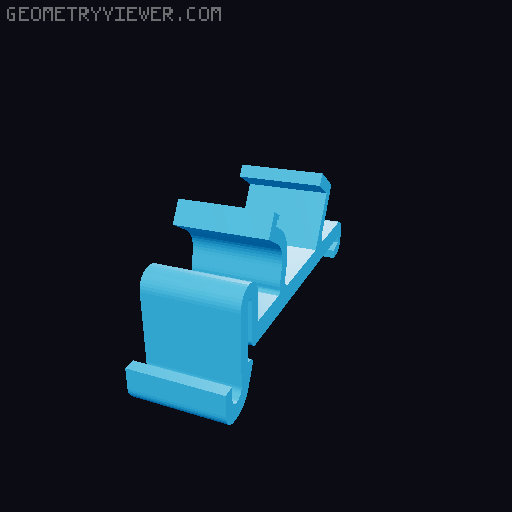

WAGO 221-4xx/6xx DIN Mount

Wago DIN Mount - Several series & versions (Remix) This remix is based on the original model for Wago clamp DIN mounts, which was specially developed for the 41x series. I have extended and adapted the model to offer greater versatility and compatibility, especially for the 41x and 61x series. There are now three different versions for both 41x and 61x that can be used depending on the installation situation and preference: 45-degree version : Similar to the original model, with slightly revised dimensions, as I had the problem that the levers of the Wago do not always open completely 90-degree version : This version is designed so that the Wago is aligned parallel to the DIN rail. It is ideal if the cables come directly from above and cannot bend strongly or if there is not enough space at the front 90-degree Long version : Similar to the 90-degree version, but the clamps hang a little lower Installation Tip For the easiest installation, it is recommended to slide the Wago clamp in from the side. To mount the holder onto the DIN rail, start by hooking the small bottom clip into place first. Then, with a slight push from a screwdriver, secure the top hook in place.
