Wall mountable Phone Holder
by MrKrueger · via Printables
| Format | STL |
| Category | Gadgets |
| License | CC BY-NC-SA |
| Triangles | 72.7k |
| Uploaded | Apr 14, 2026 |
⬇ 2 downloads
❤ 1 likes
👁 11 views
Description

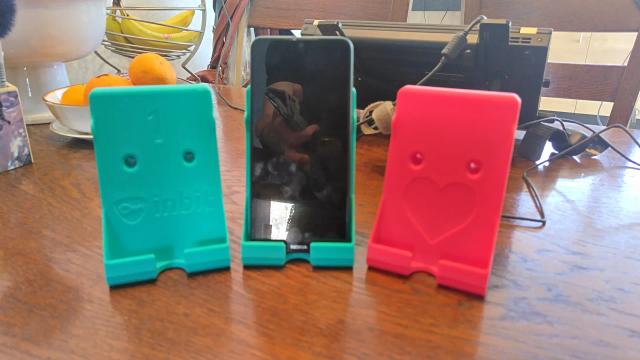

Made this on request for a local computer shop for their phones. Fits phones up to 80mm wide and 11.5mm thick. Allows mounting to the wall using two wood screws. There's a cutout for a charger plug to keep the phone on charge and some holes in the bottom face you could use for someling like routing the charger cable. Printing instructions I would advise to print rotated on the side. It should be slightly stronger and decrease print time a bit. Will need some supports, tree supports recommended. Adding logo's Want to add a logo like seen in the pictures? Give Tinkercad a try. Import the STL into Tinkercad, set the workplane to the face of the phone holder. Then either use the text tool or import an SVG file and put it on the wokrplane where you want it to be. Change the text/logo object from solid to hole and move it down (relative to the workplane) by about 0.5mm. Select your text/logo object and the phone holder and group them together. Now export the model as an STL and print.
Originally published on Printables
