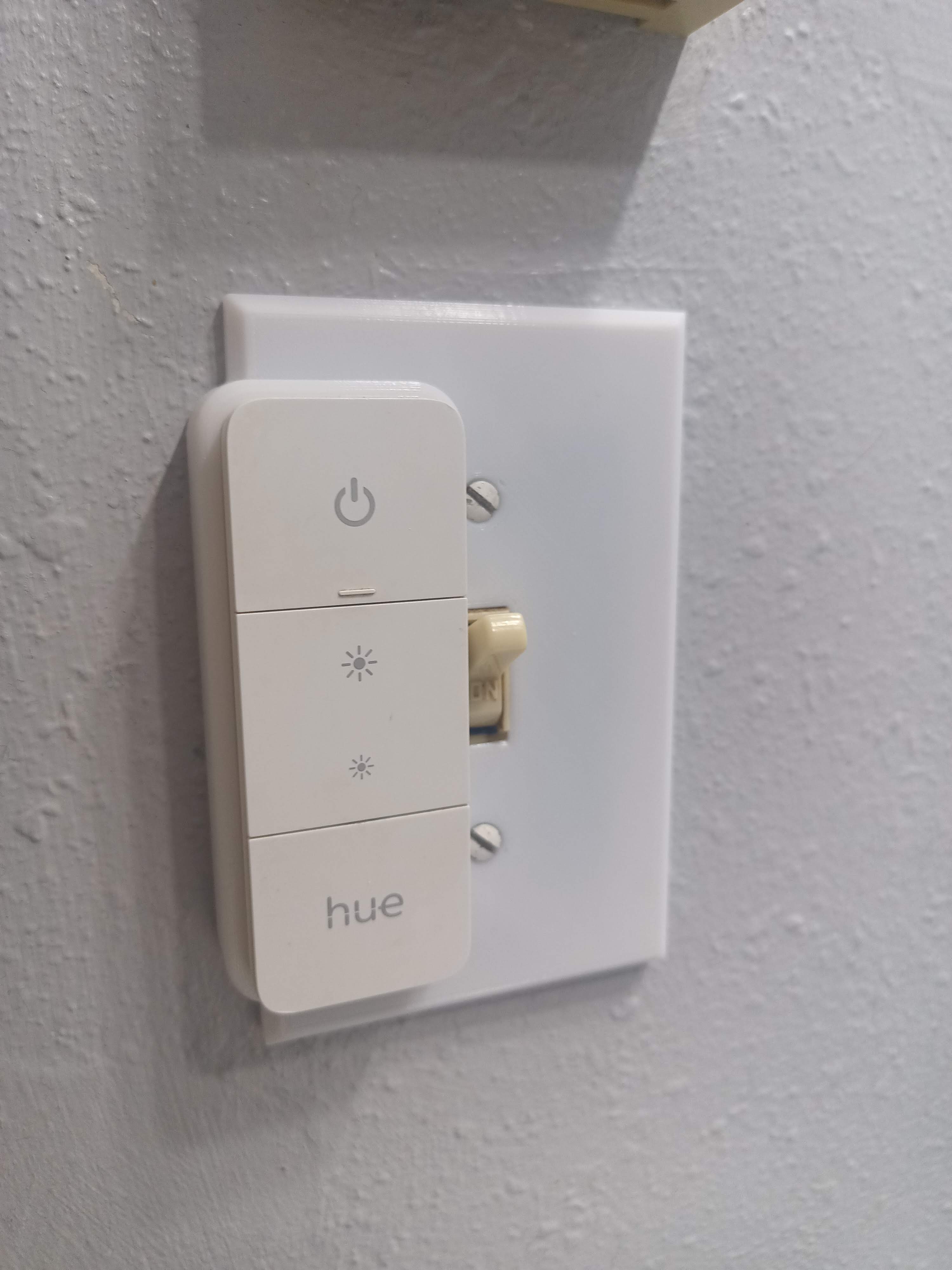

Wall plate for Philips Hue Dimmer Switch V2 and toggle light switch 3D model thumbnail

Wall plate for Philips Hue Dimmer Switch V2 and toggle light switch

by emily · via Printables
FormatSTL
CategoryHome
LicenseCC BY-NC-SA
Triangles7.7k
UploadedSep 7, 2024
⬇ 18 downloads 👁 210 views

Description

Very simple mashup of Dušan's Philips Hue Dimmer Switch V2 holder and BigB3D's toggle switch wall plate, retaining access to the original light switch in case you need it :) The Hue Dimmer holder is magnetic and has been modified to use 6mm magnets (radius) such as those commonly used in Gridfinity. The magnet wells are 4mm deep, so I used 3mm thick magnets and held them in place with a dab of hot glue, but 2mm thick magnets will work fine as well :) When you install the magnets, make sure the polarity is correct! The Hue Dimmer uses 2 magnets in alternating polarity. It is very difficult to remove the magnets once they are installed. If you print in PETG, keep in mind that hot glue and other adhesives typically do not stick to PETG unless you increase its surface energy. 3M Primer 94 can do this, but it is very hazardous! Please read all warnings and cautions and use proper PPE if you choose to use Primer 94 or a similar product. Print with outside facing up (the side that you'll see when it's installed should face up when you print it) and use supports. It's a lot of support material, sorry :(
magnetic philips hue lightswitch philipshue wallplate
