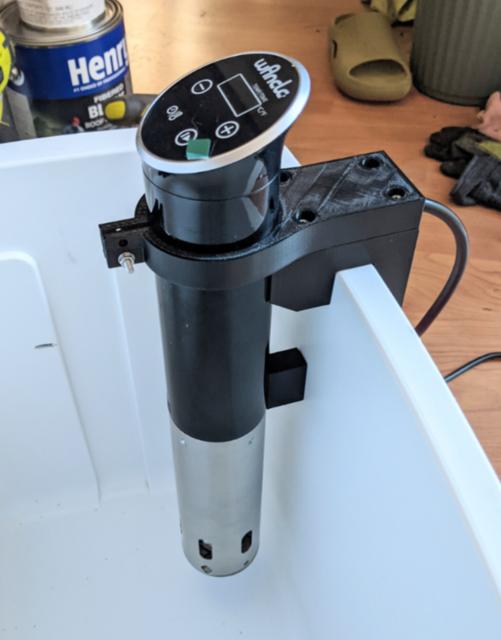

Wancle Sous Vide Cooler clamp

For a 28quart Igloo Island Breeze Cooler. Requires 4 heat-inset M3 female threaded inserts - these are set in the bottom half of the clamp (the one without the ring (4) M3 x 12mm socket cap bolts (for clamp halves) (1) M3x 10mm socket cap bolt + bolt (optional? to tighten ring halves - if you want it to be super secure.) Printed in PETG. Clamp top: no supports needed. Clamp bottom: supports needed Block: supports needed TO assemble: Remove the existing clamp and keep the screws (you' might want to reuse for the last step.) start from bottom with the top clamp. Align the clamp ring opening with the protruding screw holes from the wand in order to slide on. You'll have to pry the opening a little but it will work (at least it did for me with PETG.) secure the bottom clamp half to the top half. press the block matching the oval recess to the protruding screw holes. Its a tight fit already but you can reuse the screws to be super secure. Fusion360 file provided - not perfect but hopefully a helpful jumpstart for any of your changes
