Waveshare 10.1 inch DSI Touch Stand
by 1-rafael-1 · via Thingiverse
| Format | 3MF |
| Category | Electronics |
| License | CC BY-NC-SA |
| Uploaded | Apr 1, 2026 |
⬇ 4 downloads
❤ 1 likes
👁 38 views
Description

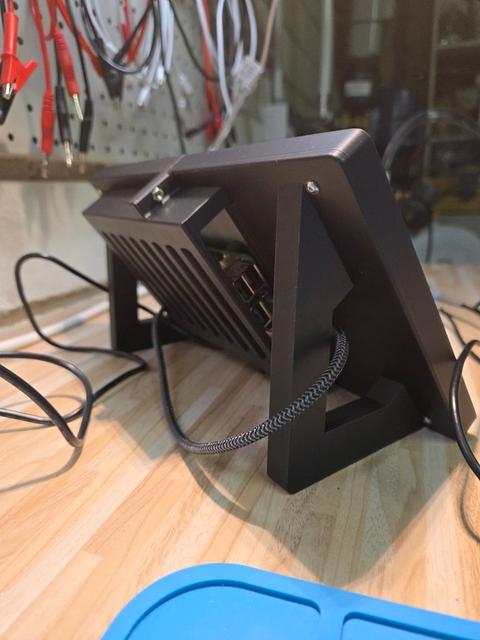

Angled stand for mounting Waveshare DSI Touch 10.1inch (see https://www.waveshare.com/wiki/10.1-DSI-TOUCH-A?srsltid=AfmBOooVQVA2Bz955ZqonadwtoYsNzzhpsWrBqPQMvlto2ceb2wFmXQt ) with a Raspberry Pi. Useful to make a Pi & Display Combo as a benchtop display. Use the standoffs for mounting the Pi on the display. Directly mounting the Pi withoiut standoffs will end having it too deep in the enclosure to attach the power cable. 4x M2.5 8mm required to mount the Pi 4x M2.5 8mm required to mount display to stand In case the printer used is too small to print in one piece, cut apart so that the protrusions on the back get cut in half exactly, then use 2x M3 12mm and fitting nuts to combine after printing.
