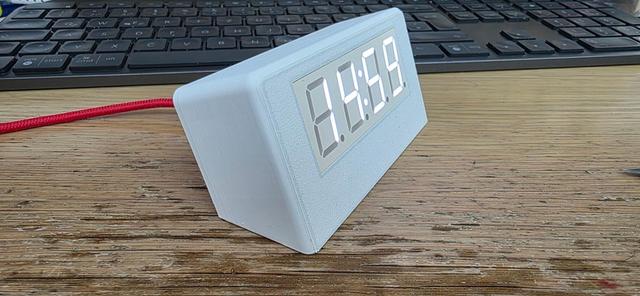

XY-Clock WiFi / Sinilink Clock - Desktop Version

This version is the "Desktop" version at an angle. See profile for other model. 1x the clock itself https://s.click.aliexpress.com/e/_c3QOXIxb https://s.click.aliexpress.com/e/_c3wPSZcp https://s.click.aliexpress.com/e/_c2vxBwkV 2x M2.5x 10mm, Countersunk 7x M2.5x 8mm, Countersunk 2x M2.5x 5mm, Countersunk Hex drive https://s.click.aliexpress.com/e/_c4kBzxfJ Torx drive https://s.click.aliexpress.com/e/_c3qnP3i9 The power supply needed is 5V through USB, an "intelligent" USB-C Charger will not work (no trigger), you will some USB-A to USB-C cable. 1x USB C female Socket https://s.click.aliexpress.com/e/_c4sbJ8PT https://s.click.aliexpress.com/e/_c3OADhPf Assembly: -Power it up and configure it according to XY-Clock Sinilink -Solder the USB-connector to the Clock -Mount the two L feet to the clock, see picuter (needs to be printed twice...) (2x 8mm) -Mount the Clock with the feet to the base (2x 10mm) -Mount the top little Clock-holder (1x 8mm) -Mount the USB-C to the back plate (2x 5mm) -Mount the back plate(4x 8mm) -Done Note: If you require a real USB-C socket, I'll create a design for you. Note: The margins are tight, if something doesn't fit, please let me know, I will adapt it so it fits for you. I tried with two different Clocks, both worked, but quality might be an issue... Note: There is a small battery in the clock - it can be removed, it's useless as the clock with fetch the time from the internet. I did it to prevent it leaking.
