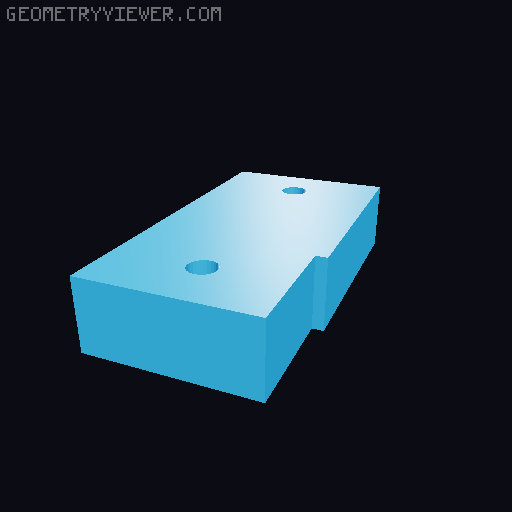

Yet another NozzleScrubber for Voron Trident without Z-Endstop Pin 3D model thumbnail

Yet another NozzleScrubber for Voron Trident without Z-Endstop Pin

by zer0Print · via Printables
FormatSTL
CategoryArt
LicenseCC BY-SA
Triangles252
UploadedFeb 27, 2023
⬇ 106 downloads ❤ 26 likes 👁 1.5k views

Description

All the models I have found do not fit properly on my Voron Trident. I have built a LDO Trident Kit. This is a Nozzle Scrubber Mod for the Voron Trident without a Z end stop pin. This model is an adapted version of: - https://www.printables.com/de/model/201999-nozzle-scrubber-with-a-little-bucket-for-voron-24 The arm is taken from here: - https://www.printables.com/de/model/367708-nozzle-scrubber-arm-extension-voron-trident-with-n The idea of the angled version is from here: - https://www.printables.com/de/model/379644-angled-nozzle-scrubber-for-voron-trident But the mounting with only one screw is not tight enough. So I combined the ideas and built a new holder. The brush holder is slightly angled (20°) towards the print bed. With the Trident, the nozzle can't extend far beyond the bed. The 8mm spacer brings the whole thing a bit higher. I printed the parts with ABS with the standard Voron print settings. You need: 2 M3x16 SHCS with the spacer or 2 M3x8 SHCS without spacer 2 M3 Roll-in T-nuts 2 M3 Threaded Inserts (M3x5x4) 4 6x3mm Neodimium Magnets
trident voron nozzlecleaner nozzlescrubber
